Electronic Skin Sensors

The SensorsX SX-PFXAAS01 Series is a thin, flexible piezoelectric film sensor designed for dynamic strain, vibration, impact, pulse, and heart-rate sensing applications. When force or bending is applied, the piezoelectric film generates an electrical signal that can be amplified and filtered for dynamic event detection. Its lightweight structure, high sensitivity, flexibility, and chemical resistance make it suitable for wearable devices, vibration monitoring, impact detection, and biomedical sensing applications.

• Sensor Type: Flexible piezoelectric film pressure sensor
• Piezoelectric Constant d33: 18–30 pC/N
• Film Thickness: 10–14 μm
• Capacitance: 0.4–0.8 nF
• Sensing Area: 10 × 8 mm
• Pin Pitch: 5.08 mm (0.200 in)
• Connection Type: Terminal
• Operating Temperature: −20°C to +100°C
• Flex Cycles: >1,000,000
• Frequency Band: <100 MHz

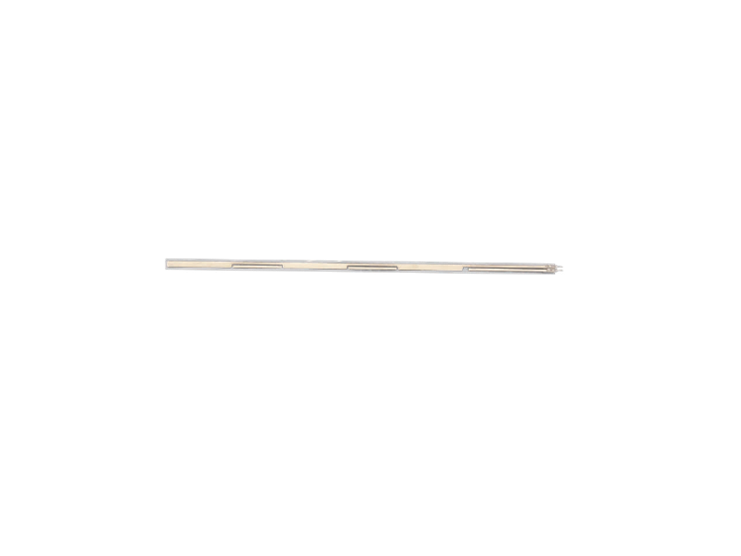

The SensorsX SX-PFXBAS01 Series is a thin, flexible PVDF piezoelectric film sensor designed for sleep monitoring and vital-sign detection applications. It detects dynamic signals such as heart rate, respiration, and pulse by converting micro-strain into an electrical signal. Its high sensitivity, flexibility, lightweight structure, and three-zone sensing design make it suitable for sleep monitoring systems, healthcare devices, and wearable health applications.

• Sensor Type: Flexible PVDF piezoelectric film sensor
• Piezoelectric Constant d33: 18–30 pC/N
• Film Thickness: 10–14 μm
• Capacitance: 1.5–3.0 nF
• Sensing Material: PVDF (Polyvinylidene fluoride)
• Sensor Structure: Electrode layer + sensing layer + polyester protective layer
• Sensing Area: 45 × 4 mm × 3 sensing zones
• Pin Pitch: 2.54 mm (0.100 in)
• Connection Type: Terminal
• Operating Temperature: −20°C to +100°C
• Flex Cycles: >1,000,000
• Frequency Band: <100 MHz

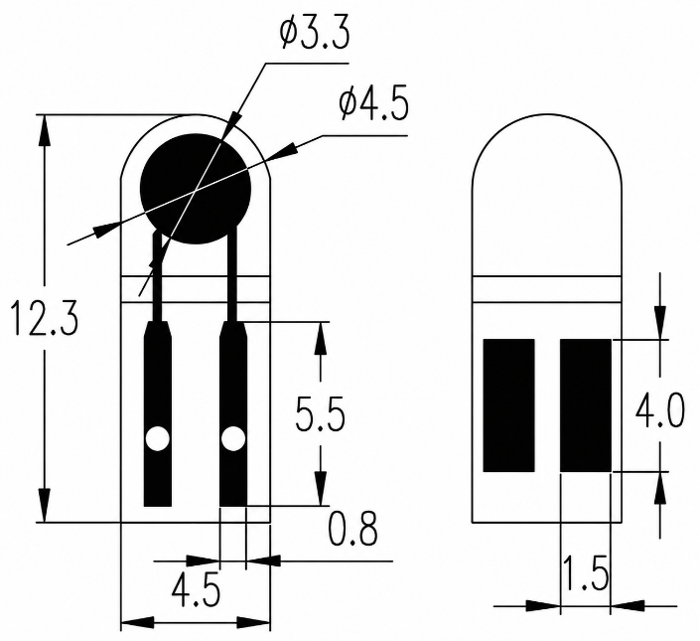

The SensorsX SX-PFZAAC01 Series is a thin, flexible resistive film pressure sensor designed for touch, pressure, and pulse sensing applications. Based on flexible nano-material technology, it offers high sensitivity, fast response, low power consumption, and excellent bend resistance, making it suitable for wearable devices, pulse and heart-rate detection, smart cushions, consumer electronics, and IoT applications.

• Sensor Type: Resistive flexible film pressure sensor
• Sensing Range: 10–100 gf (0.098–0.981 N)
• Response Point: <10 gf (<0.098 N)
• Sensor Thickness: 0.3 mm
• Response Time: <5 ms
• Initial Resistance: >1 MΩ, no load
• Test Voltage: 3.3 V typical
• Operating Temperature: <60°C
• Durability: >1,000,000 repeated presses / flex cycles

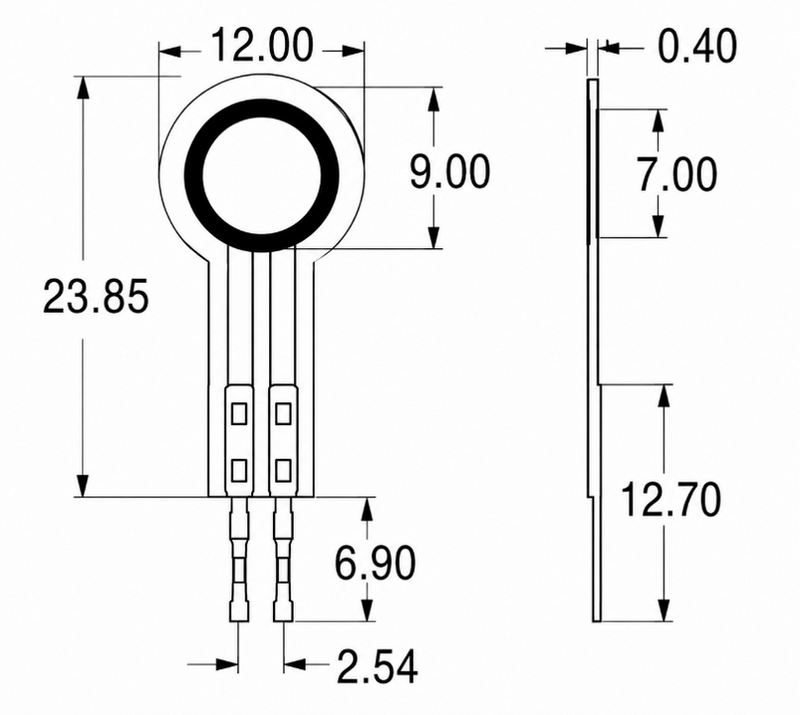

The SensorsX SX-PFZAAC02 Series is a thin, flexible resistive film pressure sensor designed for touch, pressure, and pulse sensing applications. Based on flexible nano-material technology, it offers high sensitivity, fast response, low power consumption, wide operating temperature range, and excellent bend resistance, making it suitable for wearable devices, pulse and heart-rate detection, smart cushions, consumer electronics, and IoT applications.

• Sensor Type: Resistive flexible film pressure sensor
• Sensing Range: 30–300 gf (0.29–2.94 N)
• Response Point: 30 gf (0.29 N)
• Sensor Thickness: 0.3 mm
• Response Time: <5 ms
• Initial Resistance: >10 MΩ, no load
• Test Voltage: 2.5–4.6 V
• Operating Temperature: −20°C to +100°C
• Durability: >1,000,000 repeated presses / flex cycles

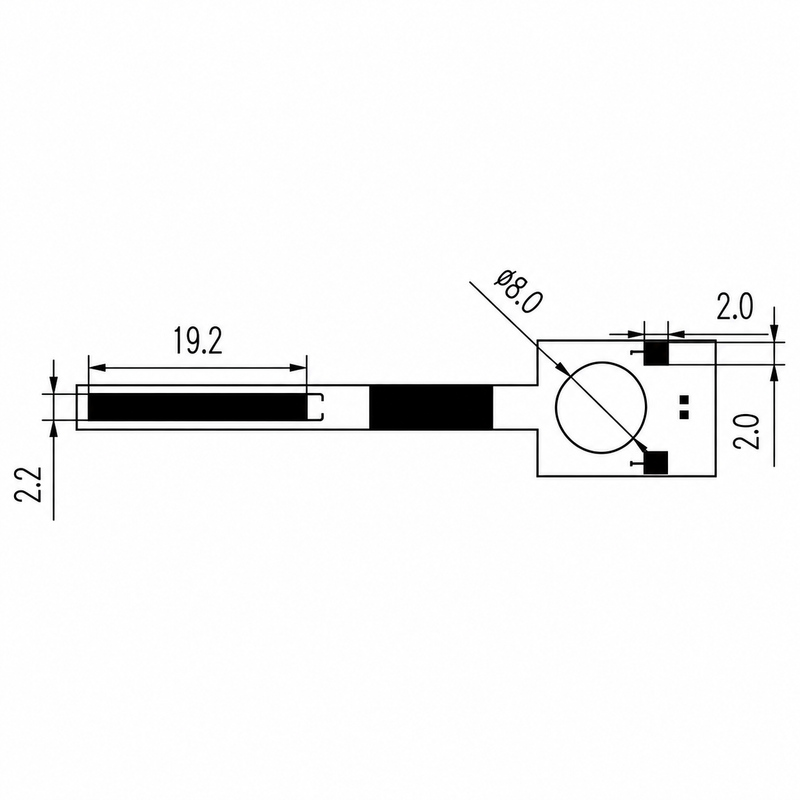

The SensorsX SX-PFZAAS03 Series is a thin, flexible resistive film pressure sensor designed for touch, pressure, and higher-force sensing applications. Based on flexible nano-material technology, it offers high sensitivity, fast response, low power consumption, wide operating temperature range, and excellent bend resistance, making it suitable for wearable devices, smart cushions, consumer electronics, IoT devices, and other pressure-sensing applications.

• Sensor Type: Resistive flexible film pressure sensor
• Sensing Range: 1,000–4,000 gf (9.81–39.2 N)
• Response Point: 1,000 gf (9.81 N)
• Sensor Thickness: 0.45 mm
• Response Time: <5 ms
• Initial Resistance: >10 MΩ, no load
• Test Voltage: 2.5–4.6 V
• Operating Temperature: −20°C to +100°C
• Durability: >1,000,000 repeated presses / flex cycles
