Product Overview

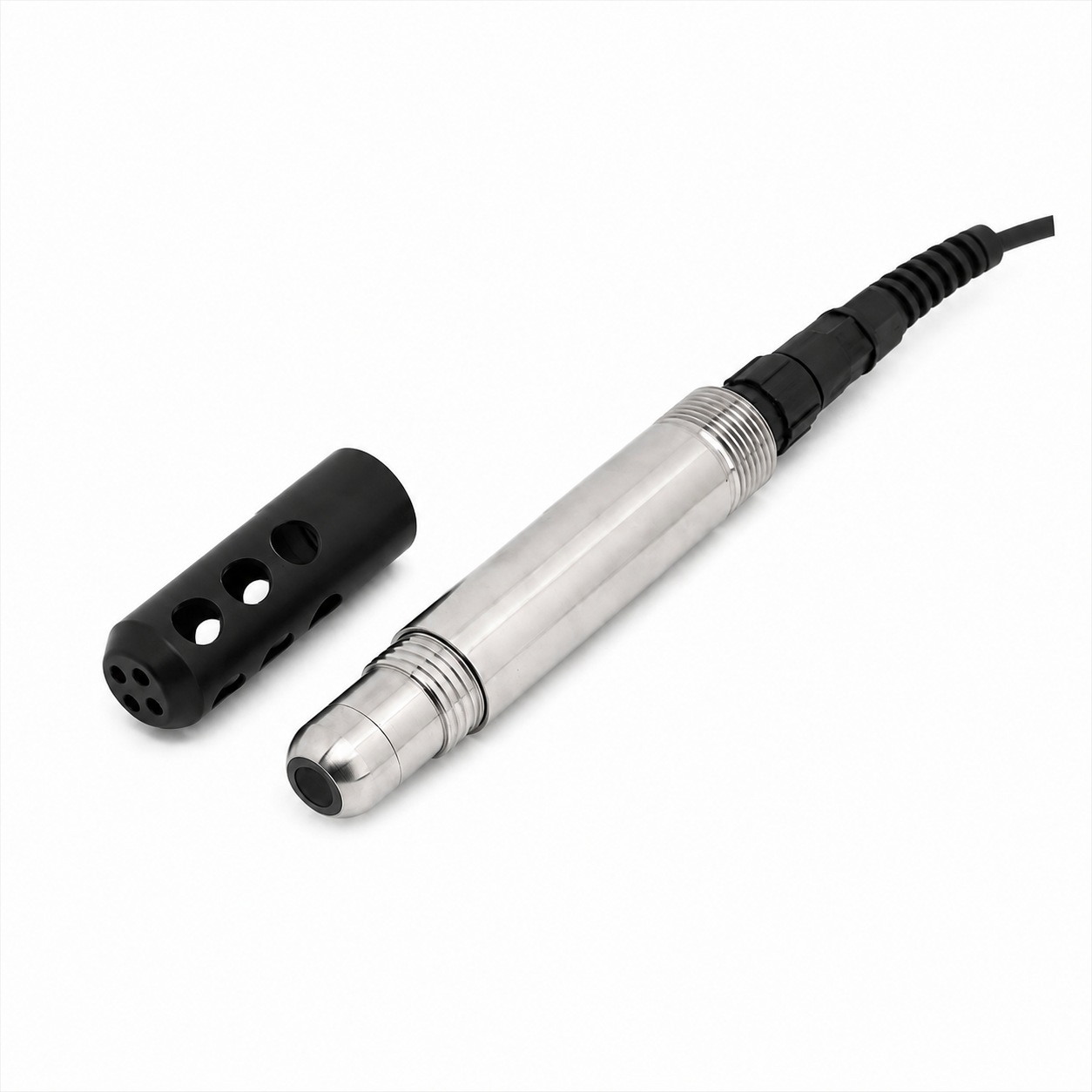

The SX-CDRNA Series fluorescence-method dissolved oxygen sensor uses fluorescence-lifetime measurement technology with high-performance fluorescent material. It does not consume oxygen, has no flow-rate limitation, and requires no electrolyte solution. The sensor requires minimal maintenance
and calibration, is resistant to hydrogen sulfide interference, and provides high accuracy and stability. A built-in temperature sensor provides automatic temperature compensation. The digital RS-485 output enables convenient system integration.
Main Features
- Digital sensor with RS-485 output, Modbus protocol
- No electrolyte required; high resistance to interference;
reduced recalibration requirements - Zero oxygen consumption; no flow-rate limitation
- Built-in temperature sensor with automatic temperature
compensation - Built-in calibration parameters, factory-calibrated for immediate installation and use
Product Application
Industries Served
| Online dissolved oxygen monitoring for water quality | Wastewater treatment | Aquatic environment monitoring |
Technical Data
| Measurement | |
| Product Type | Dissolved Oxygen Sensor |
| Measurement Principle | Fluorescence Method |
| Measurement Range | 0–20 mg/L or 0–200% saturation |
| Accuracy & Calibration | |
| Accuracy | ±1% or ±0.3 mg/L (whichever is greater) |
| Calibration | 1–point or 2–point calibration |
| Power & Communication | |
| Supply Voltage | DC 9–24 V, current >50 mA |
| Power Consumption | 0.1 W |
| Digital Communication | RS-485 / Modbus |
| Environmental Conditions | |
| Operating Temperature | 0–50 °C (32–122 °F) |
| Maximum Water Depth | 60 m (196.9 ft) |
| Ingress Protection | IP68 |
| Mechanical & Materials | |
| Mounting | G3/4 thread, immersion mounting |
| Housing Material | Titanium Alloy |
| Dimensions | Φ26 mm × 187 mm, with protective cover |
| Cable Length | 10 m standard, customizable |
Certifications & Compliance
