Product Overview
The SX-PFXAAS01 Series is a flexible piezoelectric film pressure sensor designed for dynamic strain, vibration, impact, pulse, and heart-rate sensing applications. When force or bending is applied, the piezoelectric film generates an electrical signal that can be amplified and filtered for dynamic event detection. Its thin, lightweight construction, high sensitivity, flexibility, and chemical resistance make it suitable for wearable devices, vibration monitoring, impact detection, and biomedical sensing applications.
Main Features
- Simple Structure
- Thin & Lightweight
- High Sensitivity
- Excellent Flexibility
- Chemical Resistance
- Suitable for Dynamic Strain & Vibration Measurement
Product Application
Industries Served
| Vibration Detection | Physical Impact Detection | Pulse Monitoring |
|
Heart Rate Detection
|
Dynamic Strain Sensing
|
Wearable Devices
|
Technical Data
| Sensor Characteristics | |
| Model Number | SX-PFXAAS01 |
| Sensor Type | Flexible piezoelectric film pressure sensor |
| Film Thickness | 10–14 μm |
| Piezoelectric Constant d33 | 18–30 pC/N |
| Capacitance | 0.4–0.8 nF |

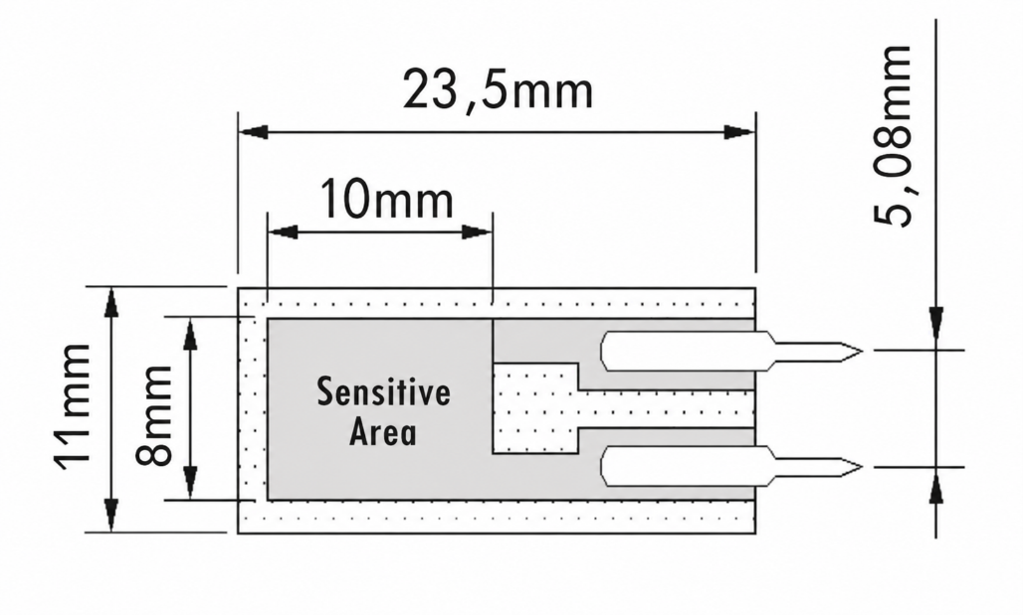

| Sensing Area | 10 × 8 mm |
| Pin Pitch | 5.08 mm (0.200 in) |
| Connection Type | Terminal |
| Environmental Conditions | |
| Operating Temperature | −20 to +100°C (−4 to +212°F) |
| Mechanical Data | |
| Flex Cycles | >1,000,000 |
| Frequency Band | <100 MHz |
