Nitric Oxide Sensors (NO)

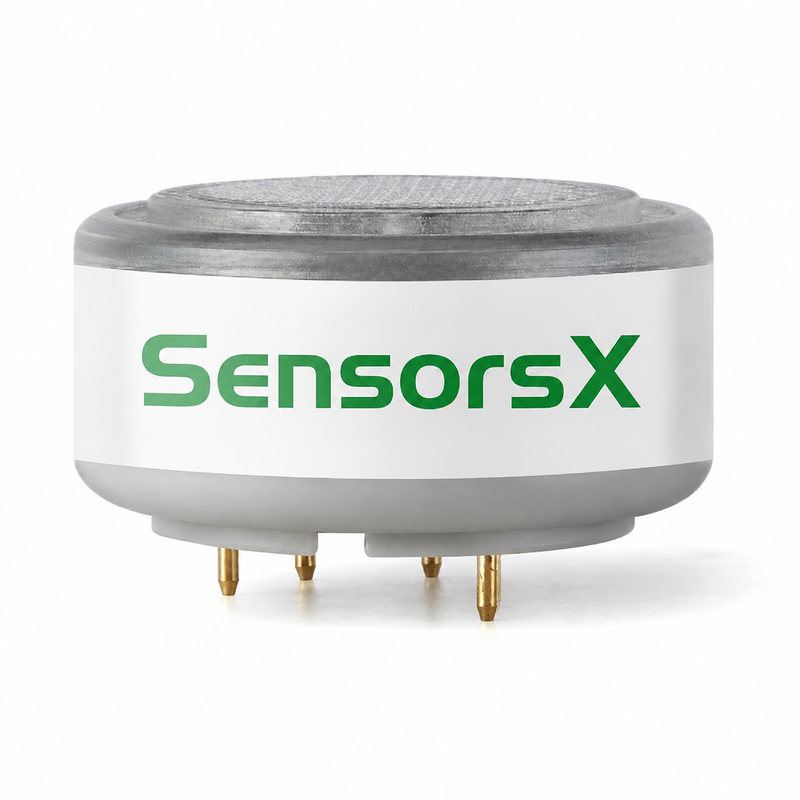

The SensorsX SX-GNOFSA Series is a four-electrode electrochemical sensor for accurate nitric oxide (NO) detection. It features low power consumption, high sensitivity, fast response, and strong interference resistance, making it suitable for industrial and environmental monitoring.

• Model: SX-GNOFSA-600
• Detection Principle: Four-electrode electrochemical
• Target Gas: Nitric Oxide (NO)
• Detection Range: 0–10 ppm
• Sensitivity: 1000 ± 400 nA/ppm at 20°C
• Response Time: ≤30 s
• Resolution: 15 ppb
• Operating Temperature: −30°C to +50°C
• Operating Life: 2 years

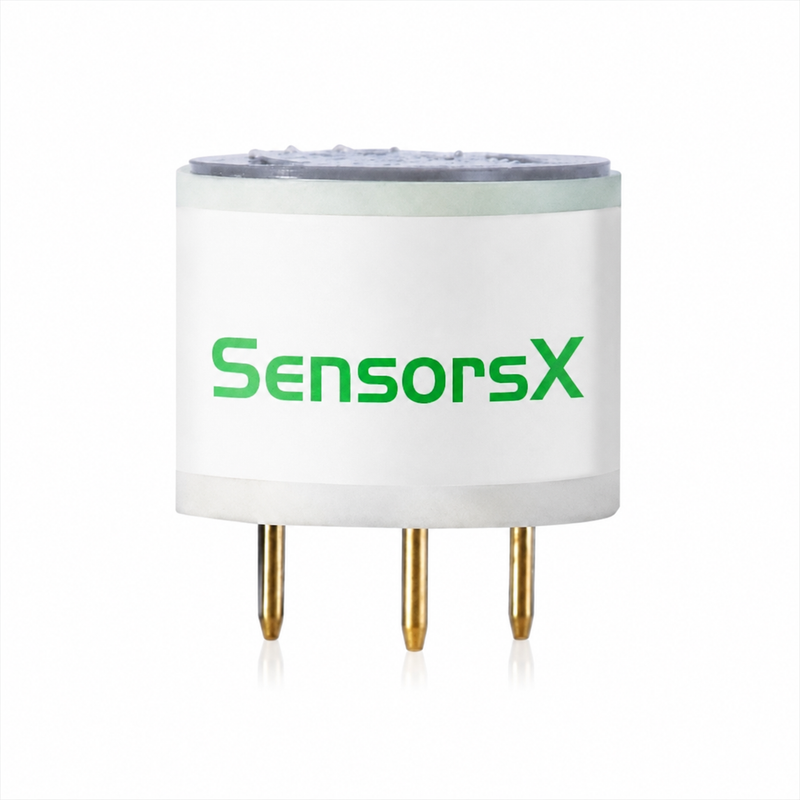

The SensorsX SX-GNOTMA Series is a compact electrochemical sensor designed for accurate nitric oxide (NO) detection. It offers a 0–100 ppm measuring range, fast response, low power consumption, high stability, and a service life of 2 years. It is suitable for industrial, environmental, and smart city monitoring applications.

• Model: SX-GNOTMA-320
• Detection Principle: Three-electrode electrochemical
• Target Gas: Nitric Oxide (NO)
• Detection Range: 0–100 ppm
• Sensitivity: 350 ± 100 nA/ppm
• Response Time: <30 s
• Zero Drift: ± 2 ppm
• Resolution: 0.5 ppm
• Operating Temperature: −30°C to +50°C
• Service Life: 2 years

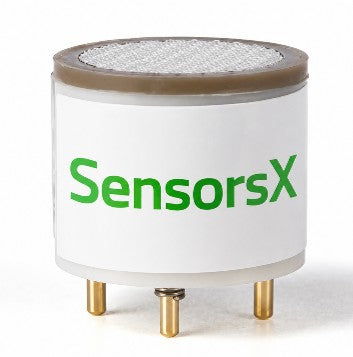

The SX-GNOTSA is a compact electrochemical nitric oxide sensor offering accurate detection from 0–250 ppm, fast response, low power consumption, and a two-year service life for industrial and environmental monitoring.

• Model: SX-GNOTSA-D80
• Detection Principle: Three-electrode electrochemical
• Target Gas: Nitric Oxide (NO)
• Detection Range: 0–250 ppm
• Sensitivity: 400 ± 100 nA/ppm
• Response Time: ≤30 s
• Zero Drift: -2 – 10 ppm
• Resolution: 1 ppm
• Operating Temperature: −30°C to +50°C
• Service Life: 2 years
