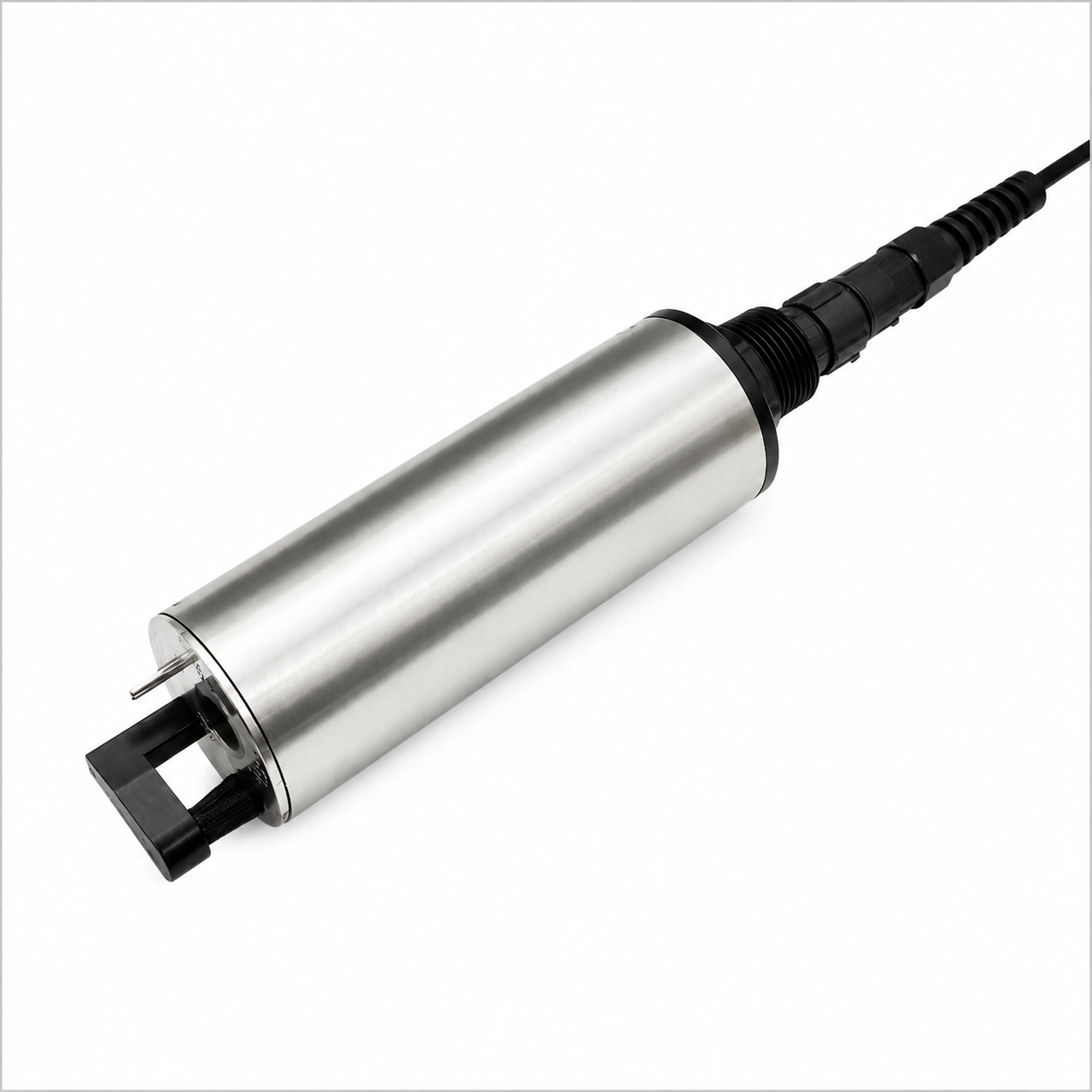

Product Overview
The SX-CDRCA Series self-cleaning dissolved oxygen sensor uses fluorescence-lifetime measurement technology with high-performance fluorescent material. It does not consume oxygen, has no flow-rate limitation, and requires no electrolyte solution. The sensor requires minimal maintenance and calibration, is resistant to hydrogen sulfide interference, and provides high accuracy and stability. A built-in temperature sensor provides automatic temperature compensation. The integrated self-cleaning brush helps prevent microbial fouling, extends maintenance intervals, and improves operational reliability
Main Features
- Digital sensor with RS-485 output, Modbus protocol
- No electrolyte required; high resistance to interference;
reduced recalibration requirements - Zero oxygen consumption; no flow-rate limitation
- Equipped with self-cleaning brush to prevent microbial fouling, extending maintenance interval
- Built-in calibration parameters, factory-calibrated for immediate installation and use
Product Application
Industries Served
| Dissolved oxygen monitoring in water and wastewater treatment | Aquaculture | Environmental water quality monitoring |
Technical Data
| Measurement | |
| Product Type | Self-Cleaning Dissolved Oxygen Sensor |
| Measurement Principle | Fluorescence Method |
| Measurement Range | 0–50 mg/L or 0–500% saturation |
| Accuracy & Calibration | |
| Accuracy | 0–20 mg/L: ±1% or ±0.2 mg/L; >20 mg/L: ±5% or ±0.6 mg/L (whichever is greater) |
| Calibration | 1–point or 2–point calibration |
| Power & Communication | |
| Supply Voltage | DC 6–24 V, ≥1 A |
| Power Consumption | 0.1 W idle / 0.8 W while brushing |
| Digital Communication | RS-485 / Modbus |
| Environmental Conditions | |
| Operating Temperature | 0–50 °C |
| Maximum Water Depth | 30 m |
| Ingress Protection | IP68 |
| Mechanical & Materials | |
| Mounting | 3/4 NPT thread, immersion mounting |
| Housing Material | 316L Stainless Steel; Titanium Alloy customizable |
| Dimensions | Φ48 mm × 197.1 mm |
| Cable Length | 10 m standard, customizable |
