By directly measuring the mass rather than the volume of a medium, these sensors eliminate the impact of temperature and pressure fluctuations on accuracy. With very fast response and excellent turndown ratio, they provide exceptional material balance control for specialty gas delivery in semiconductor manufacturing, precise natural gas proportioning, and high-value chemical processes.

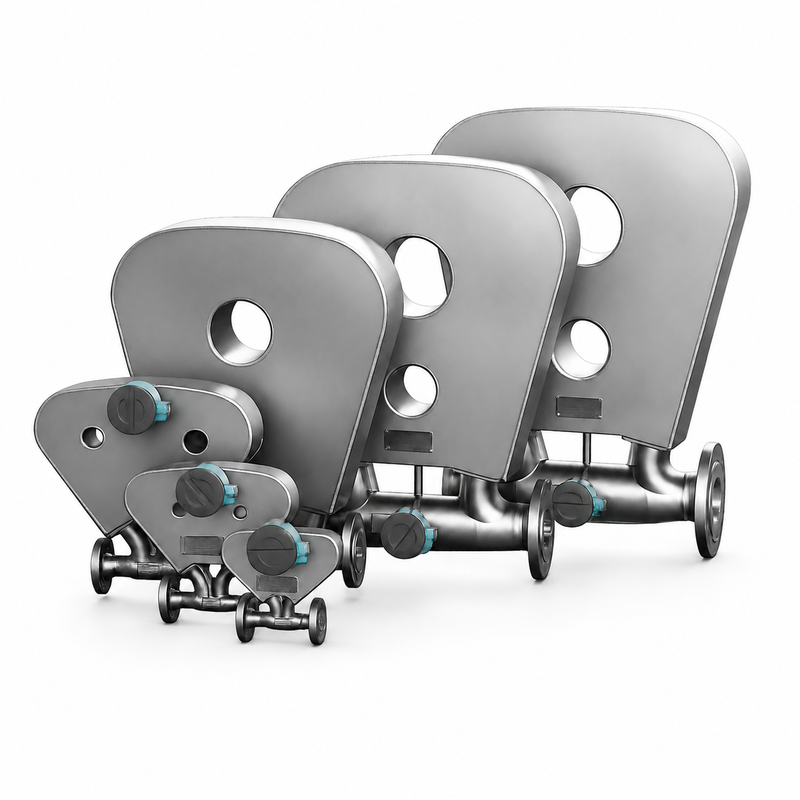

The SensorsX SX-FMCB Series is a Coriolis mass flowmeter designed for direct measurement of mass flow, density, and temperature in liquids, gases, slurries, and selected solid-liquid mixtures, with volume flow calculated from measured variables. It offers liquid mass flow accuracy up to ±0.15%, supports pipe sizes from DN1.5 to DN200, and provides multiple output options including 4–20 mA, HART, RS-485 / Modbus RTU, pulse, frequency, and discrete outputs. With no moving parts and no straight-pipe installation requirement, it is suitable for a wide range of industrial applications, including food & beverage, chemical processing, pharmaceuticals, oil & gas, LNG/CNG, pulp & paper, and metal smelting.
Accuracy: ±0.15% Mass Flow (Liquid); ±0.50% Mass Flow (Gas)
Nominal Diameter: DN1.5 – DN200
Maximum Flow Rate: Up to 750 t/h
Measured Variables: Mass Flow / Density / Temperature / Volume Flow
Output Signal: 4–20 mA / Pulse / Frequency / Discrete / HART / RS-485 Modbus RTU
Power Supply: 20–140 VDC / 80–264 VAC, 50–60 Hz
Ingress Protection: IP67
Working Pressure: Up to 35 MPa, depending on configuration
Process Connection: Flanged / Threaded / Tri-clamp
Wetted Materials: 316L SS / 304 SS / Titanium Ti1 / Hastelloy C
Process Temperature: −200°C to +245°C, depending on transmitter and application configuration
