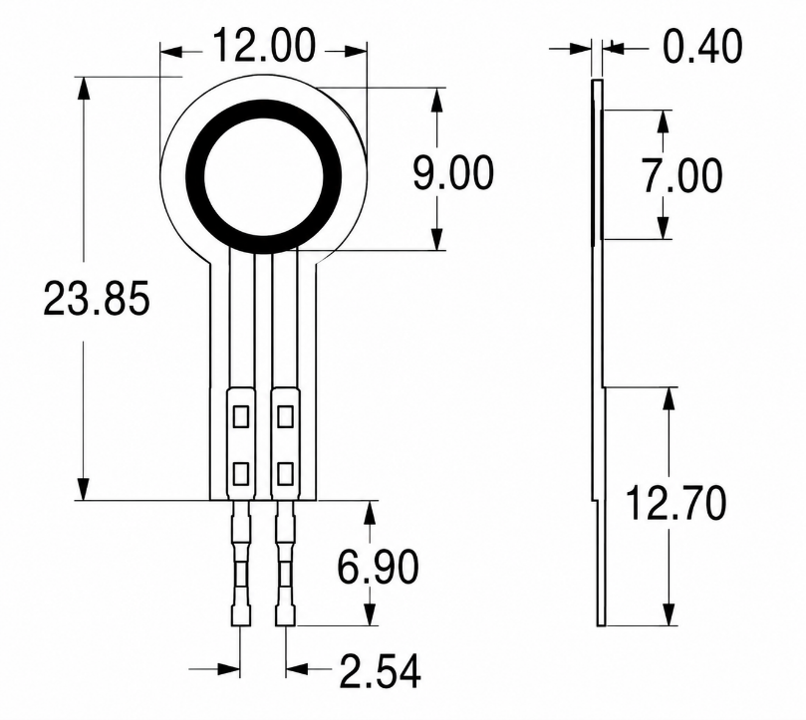

Product Overview
The SX-PFZAAC02 Series is a resistive flexible film pressure sensor designed for touch and pressure sensing applications. Based on flexible nano-material technology, it provides high sensitivity, excellent flexibility, fast response, long service life, and low standby power consumption. The sensor shape, sensing range, and minimum response point can also be customized for different applications.
Main Features
- High Sensitivity
- Flexible & Bend-Resistant
- Fast Response < 5 ms
- Long Service Life > 1,000,000 repeated presses
- Low Power Consumption
- Customizable Shape, Sensing Range & Response Point
Product Application
Industries Served
|
Touch Pressure Sensing Interfaces
|
Pulse & Heart Rate Detection
|
Wearable Health Devices
|
|
Smart Seat Cushions
|
Consumer Electronics
|
IoT Devices
|
Technical Data
| Sensing | |
| Model Number | SX-PFZAAC02 |
| Sensing Range | 30–300 gf (0.29–2.94 N) |
| Sensor Thickness | 0.3 mm |
| Response Point | 30 gf (0.29 N) |
| Electrical | |
| Initial Resistance | > 10 MΩ (no load) |
| Test Voltage | 2.5–4.6 V |
| Environmental Conditions | |
| Operating Temperature | −20 to +100°C (−4 to +212°F) |
| Mechanical Data | |
| Durability | > 1,000,000 flex cycles / repeated presses |
| Response Time | < 5 ms |
| EMI Emissions | None generated |
| ESD Sensitivity | Insensitive |
