As core tools for evaluating water purity and salinity, these sensors infer total dissolved solids by measuring the ability of a solution to conduct current. With precise temperature compensation, they withstand high pressure and corrosion in industrial fluids. They are widely used in power boiler water quality monitoring, seawater desalination, and reverse-osmosis pure water preparation systems, serving as key sensing elements for stable operation of industrial circulating water systems and process fluid quality.

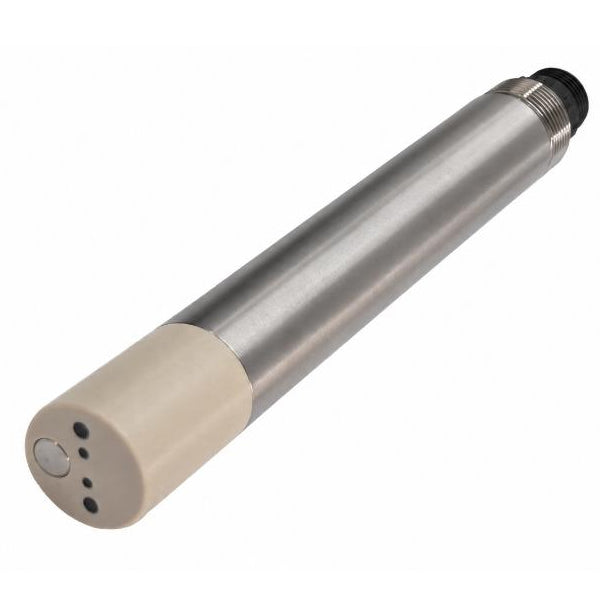

The SensorsX SX-CCFMA Series is a four-electrode conductivity and salinity sensor designed for industrial and environmental water quality monitoring. It provides simultaneous measurement of conductivity, salinity, TDS, and temperature, with RS-485 Modbus communication, automatic temperature compensation, and IP68 protection for reliable long-term operation.
The SensorsX SX-CCFNA Series is a four-electrode conductivity and salinity sensor for industrial water quality monitoring. It measures conductivity, salinity, TDS, and temperature, with RS-485 Modbus communication, automatic temperature compensation, and IP68 protection for long-term submersible applications.
Measurement Principle: Four-electrode technology
Conductivity Range: 0.001–5 mS/cm or 0.001–100 mS/cm
Salinity Range: 0–2.5 ppt or 0–80 ppt
TDS Range: 0–3,200 mg/L or 0–64,000 mg/L
Accuracy: Conductivity: ±1% or 0.01 mS/cm, whichever is greater; Salinity: ±0.05 ppt or ±1 ppt
Download Datasheet
