SX-PTCB Series
1/8
SX-PTCB Series

SX-PTCB Series

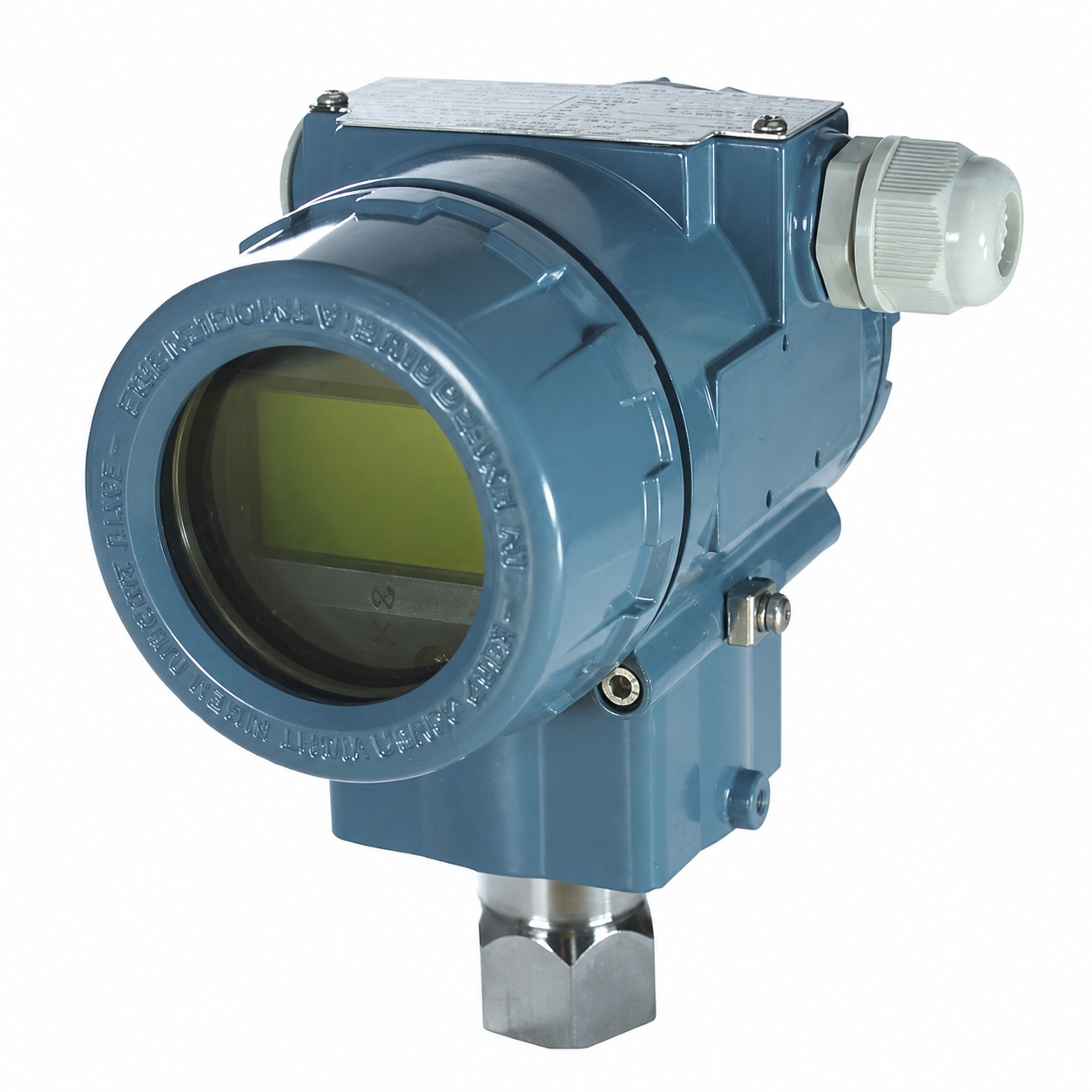

The SX-PTCB Series direct-mount process pressure transmitter provides high-accuracy measurement of gauge and absolute pressure in liquids, gases, and steam, and can also be used for tank and vessel level, density, and interface measurement. Depending on the selected configuration, it provides a 4–20 mA/HART, RS-485 Modbus RTU, or Profibus PA output. With excellent long-term stability, multiple display and process-connection options, IP67 ingress protection, and optional ATEX intrinsically safe or flameproof approvals, it is suitable for oil and gas, petrochemical and chemical processing, power generation, water and wastewater, food and beverage, pharmaceutical, pulp and paper, metal smelting, and marine and offshore applications.

  • Gauge Pressure Range: 0–0.6 kPa to 0–40 MPa
  • Absolute Pressure Range: 0–2 kPa to 0–3 MPa
  • Accuracy: ±0.075% FS
  • Output: 4–20 mA DC / HART / RS-485 Modbus RTU / Profibus PA
  • Power Supply: 9–36 V DC without display;13.5–36 V DC with LCD or OLED
  • Ingress Protection: IP67

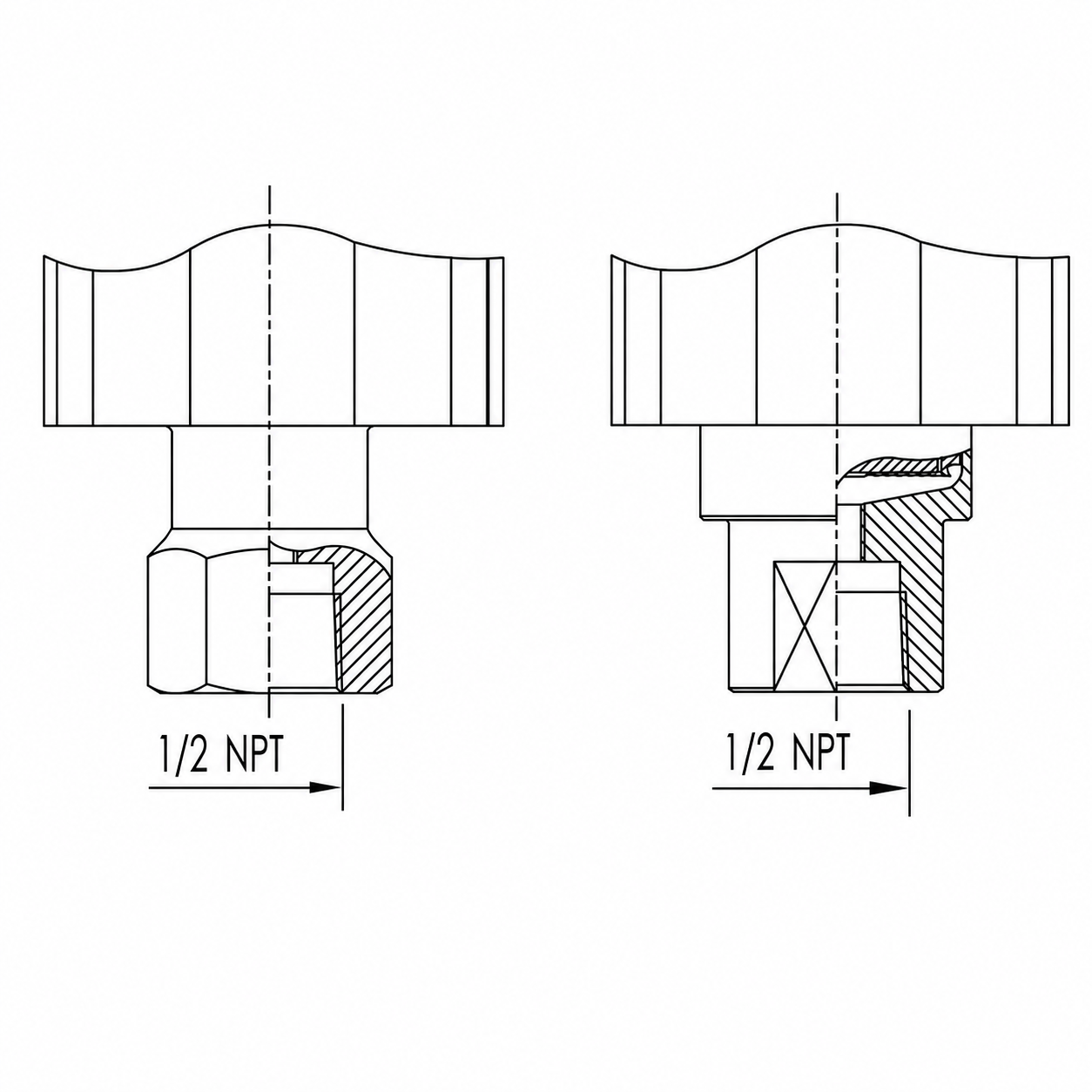

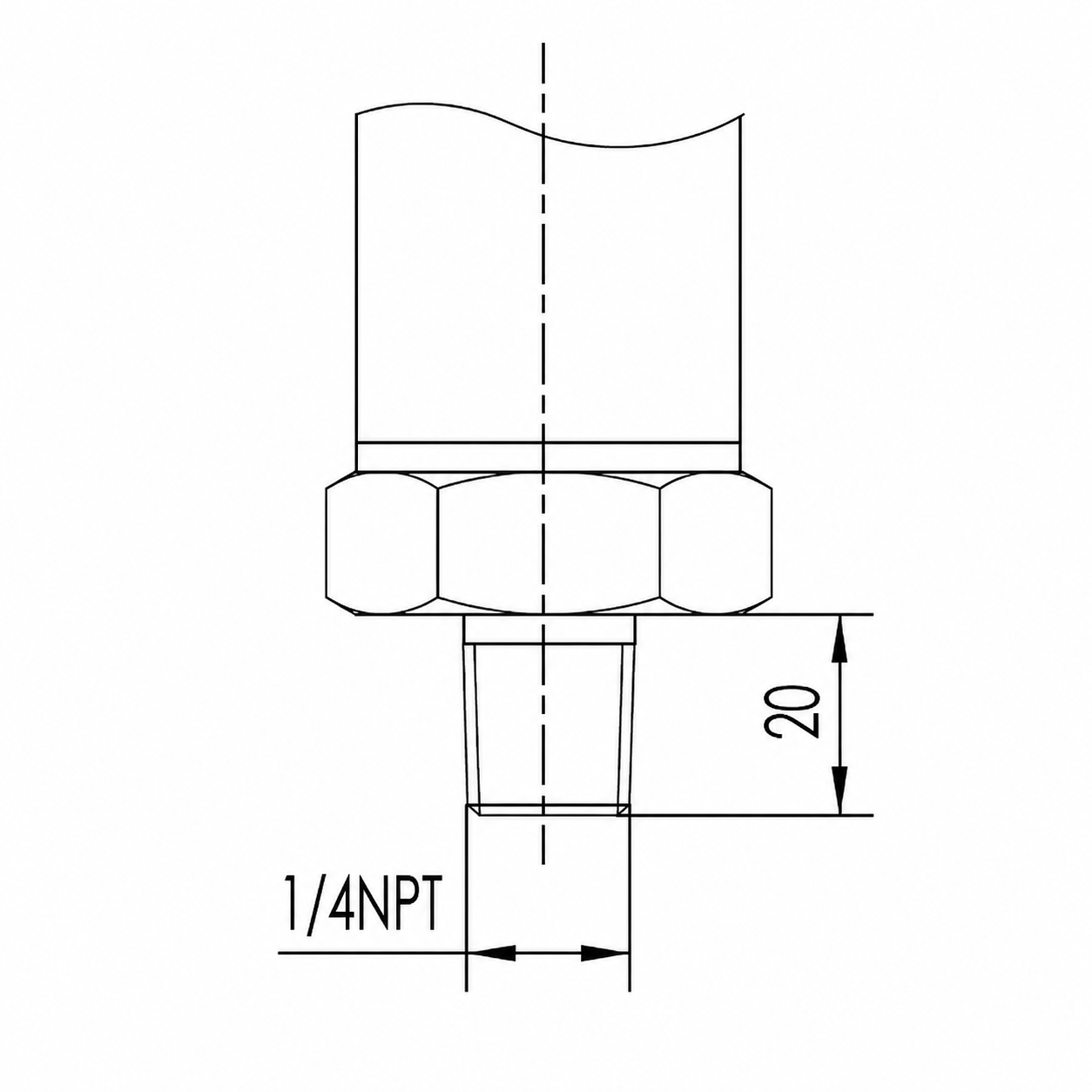

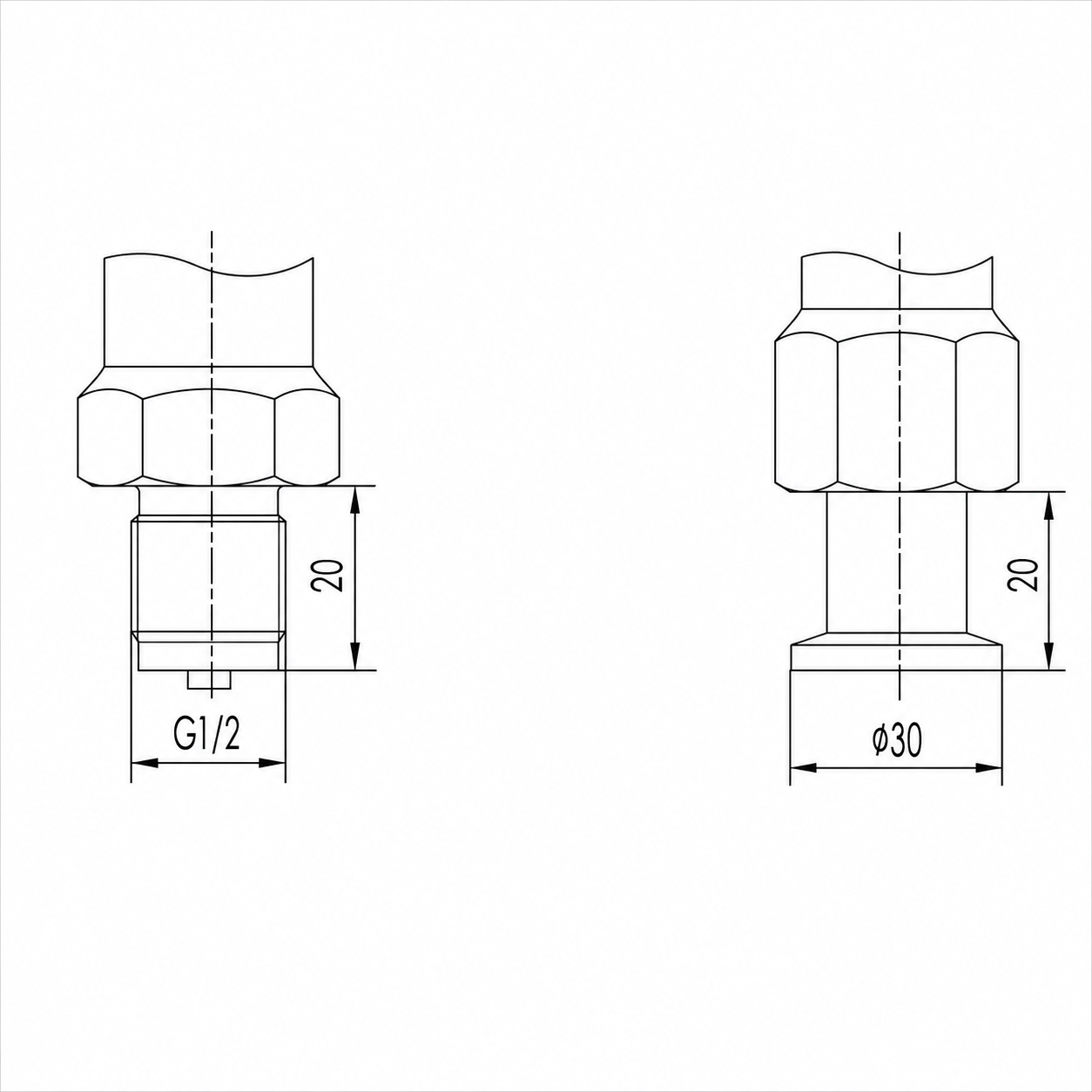

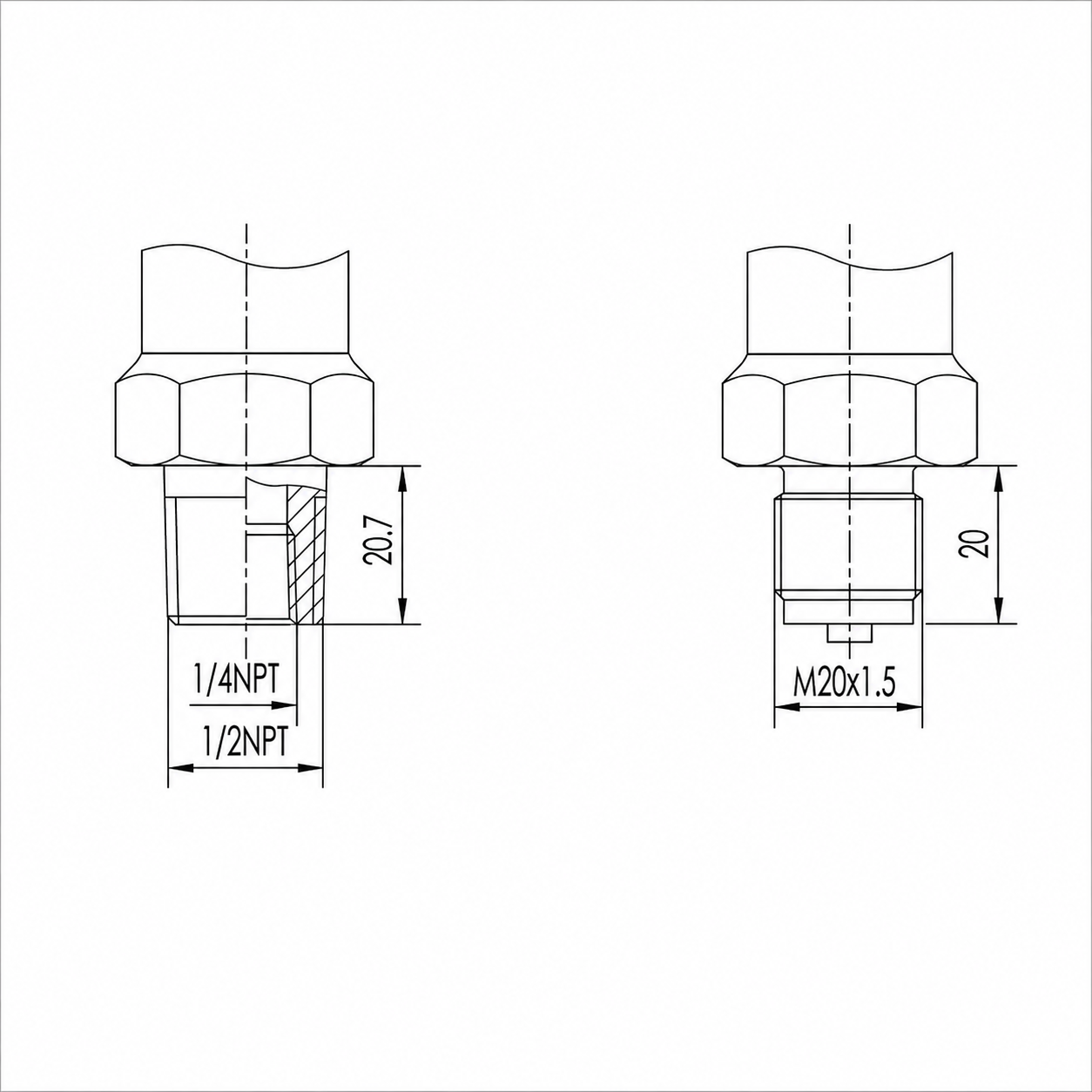

  • Process Connections: ½" NPT ; ½" NPT ; ¼-18 NPT ; G½ male ; M20 × 1.5 ; KF16 vacuum fitting ; G1 ; M44 × 1.25 ; Ø25.8 pulp-process connections
  • Diaphragm Materials: 316L stainless steel / gold-plated 316L stainless steel / Hastelloy C / tantalum
  • Ambient Temperature: Up to −40 to +85°C, depending on configuration
  • Explosion Protection: ATEX intrinsic safety or flameproof, optional
Ordering Code
$339.00

Product Overview

The SX-PTCB series gauge and absolute pressure transmitter measures level, density, and pressure of
liquids, gases, or steam, and converts them into a 4–20 mA DC HART output signal. The SX-PTCB series
provides HART, Profibus PA, and RS-485 Modbus communication protocols.


Typical Measurements

  • Gauge and absolute pressure measurement
  • Tank and vessel level monitoring
  • Density and interface measurement

Main Features

  • High Accuracy ±0.075%
  •  Wide Measuring Range Gauge: 0.6 kPa–40 MPa; Absolute: 2kPa–3 MPa
  •  Excellent Long-Term Stability ±0.15% URL / 10 years
  • Multiple Communication Protocols 4-20 mA HART │ RS-485 Modbus RTU │ Profibus PA
  • Hazardous Area Certified ATEX — Intrinsic Safety and Flameproof
  • Excellent Temperature Performance −40 to +85 °C (−40 to +185 °F) operating range
  • Flexible Process Connections ½" NPT (standard); G½, M20×1.5, KF16 vacuum fitting (adapters)
  • Flexible Display Options LCD / OLED / None — selectable on order
  • IP67 Ingress Protection per IEC 60529
  • Linear or Square Root Output 4-20 mA DC, 2-wire, loop powered

Product Application

Industries Served

Oil & Gas Power Generation Food & Beverage
Petrochemical & Chemical Water & Wastewater Pharmaceutical
Metal Smelting Pulp & Paper Marine & Offshore

Technical Data

Measurement
Measurement Type Gauge (relative) pressure / Absolute pressure
Measuring Range Gauge 0–0.6 kPa to 0–40 MPa; Absolute: 0–2 kPa to 0–3 MPa
Overload Capacity 0.2 MPa to 50 MPa
Accuracy & Stability
Accuracy ±0.075% reference accuracy; ±0.1% optional
Long-Term Stability ±0.15% URL over 10 years

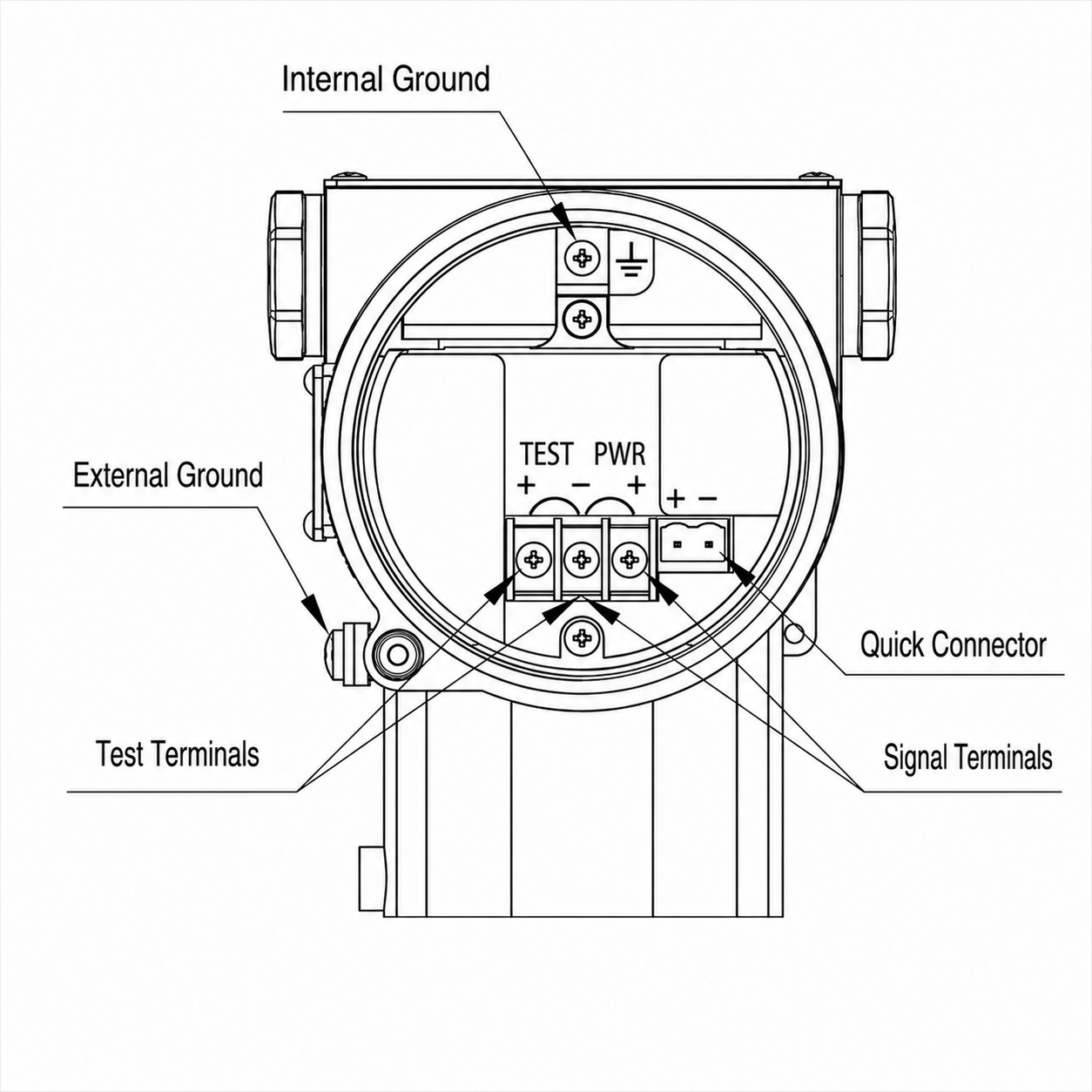

Power & Output
Power Supply 9–36 V DC without display; 13.5–36 V DC with LCD or OLED
Analog Output 4–20 mA DC, 2-wire, loop-powered; linear or square-root selectable
Digital Communication HART / RS-485 Modbus RTU / Profibus PA
Environmental Conditions
Operating Temperature −40 to +85°C; −20 to +65°C with LCD display
Storage and Transport Temperature −50 to +85°C
Ingress Protection IP67 per IEC 60529
EMC Compatibility CISPR 22 / EN 55022 and IEC 61000-4 series
Mechanical & Materials
Housing Material Epoxy-coated aluminium alloy; 316 stainless steel optional
Wetted Parts Material 316L stainless steel, gold-plated 316L stainless steel, Hastelloy C, or tantalum diaphragm
Compatible Media Liquids, gases, and steam compatible with the selected wetted materials and fill fluid
Pressure Connection ½" NPT female standard; ½" NPT male; ¼-18 NPT male or female; G½ male; M20 × 1.5 male; KF16 vacuum fitting; optional heat-dissipation or pulp-process connections

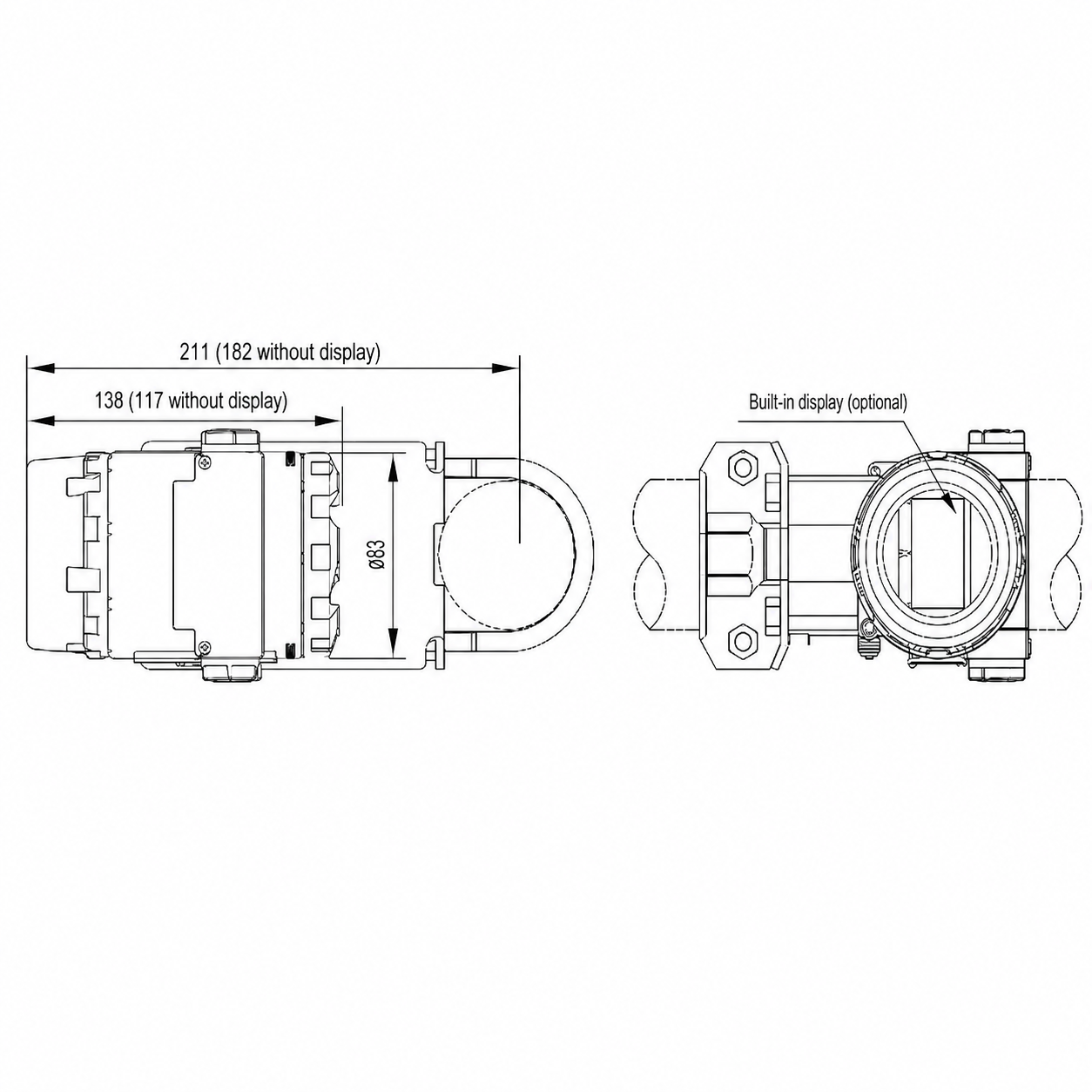

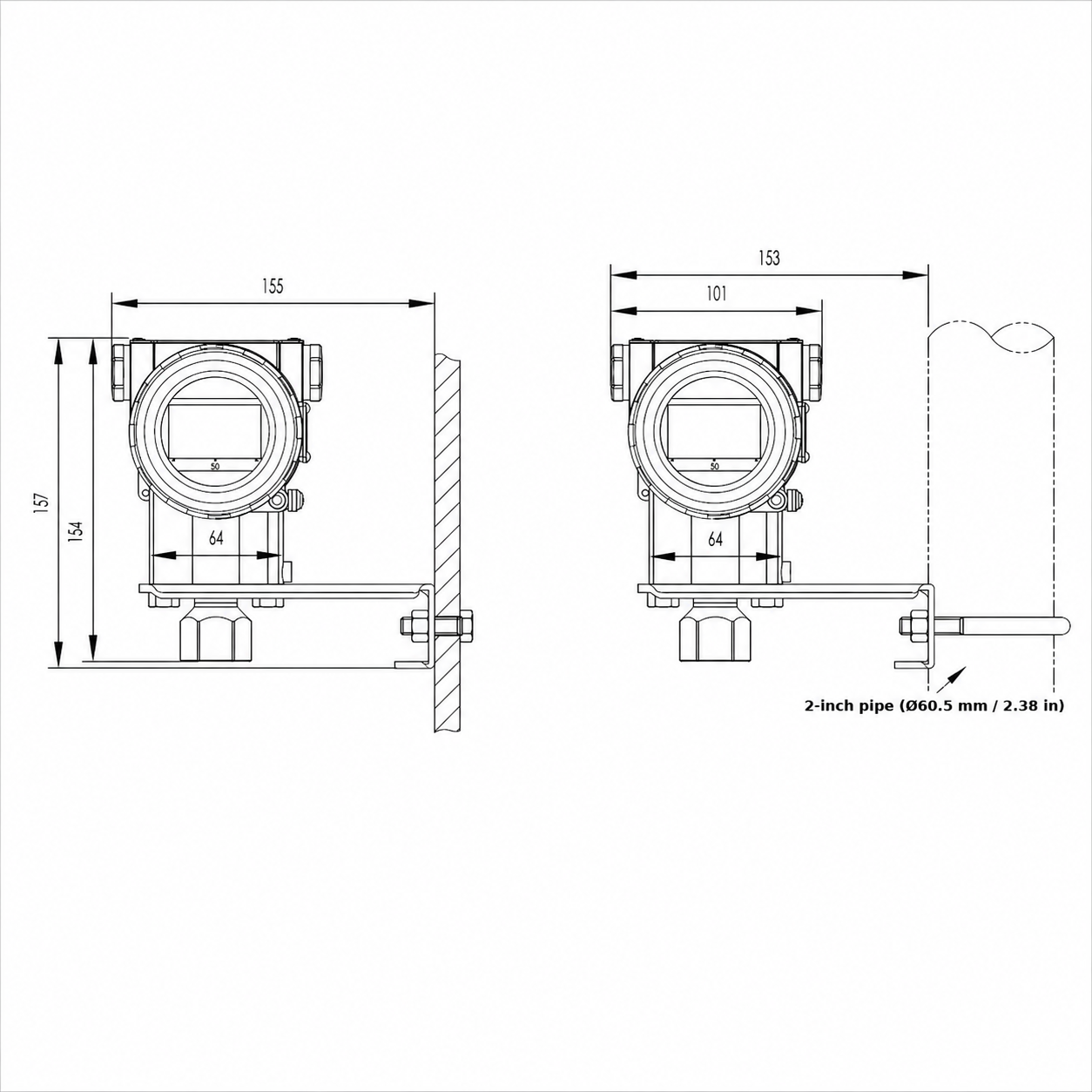

Mounting Orientation Direct mounting; optional wall mounting or 2-inch pipe mounting with bracket
Housing & Weight
Housing Material Epoxy-coated aluminum alloy; 316 stainless steel optional
Approx. Weight 1.6 kg


Certifications & Compliance
