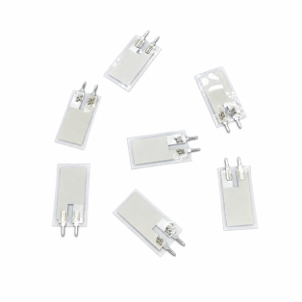

Product Overview
The SX-PFXADS02 Series is a thin, flexible PVDF piezoelectric polymer film sensor element designed for dynamic strain, vibration, impact, and contact-force sensing applications. It uses screen-printed silver-ink electrodes and provides high voltage sensitivity while being supplied without attached leads for flexible system integration. Its compact structure, flexible piezoelectric film, customizable dimensions, and suitability for prototyping make it well suited for contact-force sensing, impact counting, event timing, vibration detection, and custom sensor development.
Main Features
- Thin & Flexible PVDF Film
- High Piezoelectric Activity
- High Voltage Sensitivity
- Flexible Silver-Ink Metallization
- Screen-Printed Silver-Ink Electrodes
- Lead-Free Sensor Element for Flexible Integration
- Custom Sizes & Thicknesses Available
- Suitable for Custom Sensor Integration & Prototyping
Product Application
Industries Served
| Sensing contact forces |
Recording the time of an event |
Counting the number of impacts |
| Custom sensor development |
Technical Data
| Sensor Characteristics | |
| Model Number | SX-PFXADS02 |
| Sensor Type | Piezoelectric polymer film sensor element |
| Sensing Material | Piezo polymer film (PVDF) |
| PVDF Film Thickness | 28 μm (1.10 mil) |
| Electrode | Silver ink screen-printed electrode |
| Capacitance | 0.5 nF ±15% |
| Minimum Input Impedance | 1 MΩ (10 MΩ recommended) |
| Output Voltage | Millivolts to hundreds of volts, depending on application and strain |
| Environmental Conditions | |
| Operating Temperature | −40 to +60°C (−40 to +140°F) |

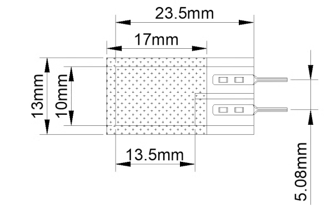

| Mechanical Data | |
| Total Thickness | 0.2 mm ±10% (0.008 in ±10%) |
| Sensor Length | 17 mm (0.669 in) |
| Sensor Width | 10 mm (0.394 in) |
| Total Length | 23.5 mm (0.925 in) |
| Total Width | 13.5 mm (0.531 in) |
| Pin Pitch | 5.08 mm (0.200 in) |
