Product Overview

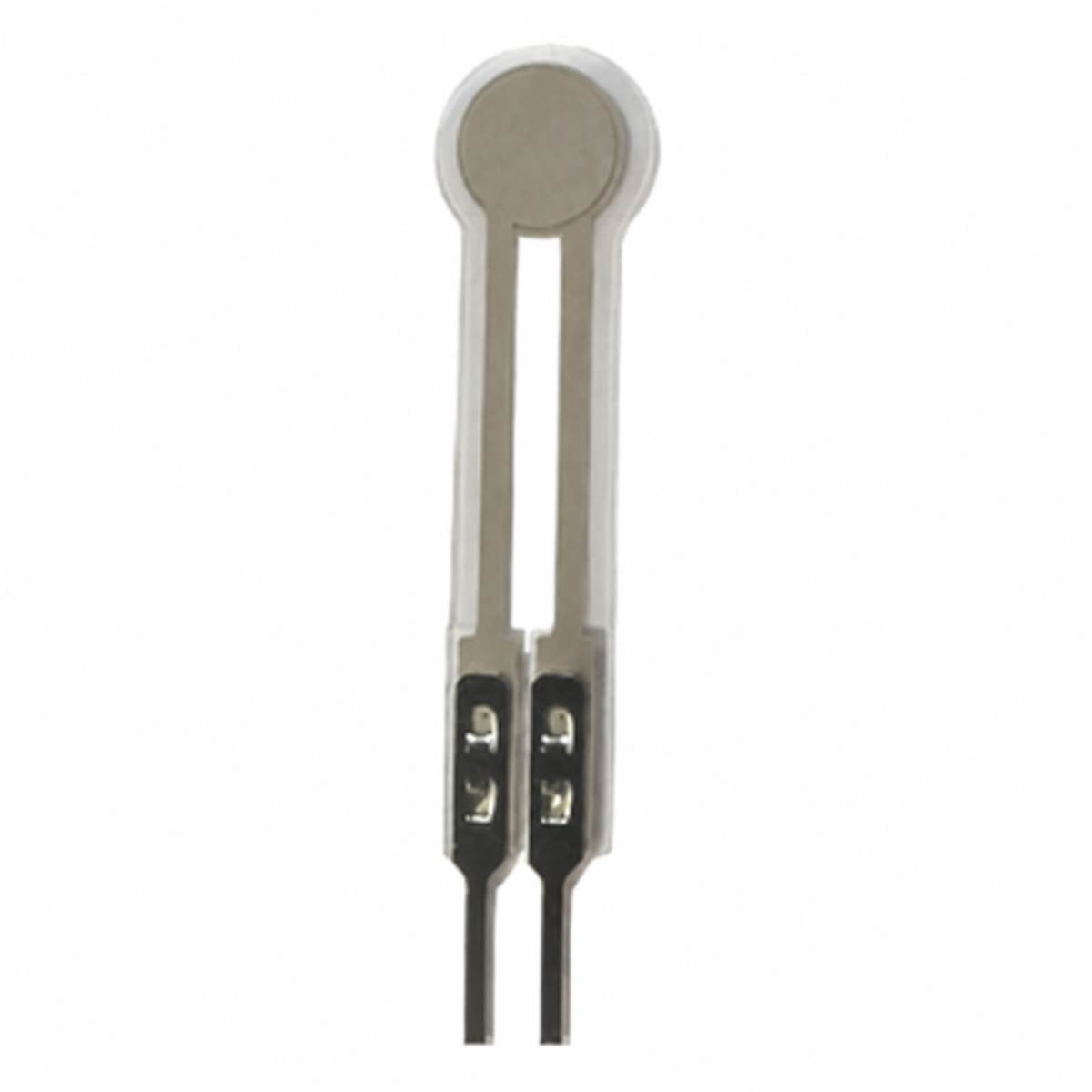

The SX-PFXADC02 Series is a piezoelectric film sensor designed for blast, impact, dynamic pressure, and vibration monitoring applications. It consists of a piezoelectric sensing film with a protective layer and provides signal output through PIN-type leads. With appropriate downstream signal conditioning and calibration, the sensor output can be used to determine applied impact force. Its compact structure, wide frequency response, high sensitivity, flexibility, and stability make it suitable for high-speed dynamic force and impact detection applications.
Main Features
- Wide Frequency Response
- Wide Dynamic Range
- High Sensitivity
- High Flexibility
- High Voltage Output
- Low Acoustic Impedance
- High Stability
- High Dielectric Strength
Product Application
Industries Served
| Dynamic pressure detection | Vibration monitoring | Blast / explosion impact monitoring |
Technical Data
| Sensor Characteristics | |
| Model Number | SX-PFXADC02 |
| Sensor Type | Piezoelectric film sensor |
| Piezoelectric Constant d33 | 18–32 pC/N |
| Capacitance | 0.09 nF ±5% |
| Connection Type | PIN-type leads |
| Sensor Thickness | 75 μm ±5% (2.95 mil ±5%) |
| Overall Sensor Diameter | φ7 mm (φ0.276 in) |
| Sensor Structure | Piezoelectric film + protective layer |
| Environmental Conditions | |
| Storage / Operating Temperature | −30 to +60°C (−22 to +140°F) |
| Mechanical Data | |
| Flex / Bend Cycle Rating | >1,000,000 cycles |
| Frequency Bandwidth | 0.01 Hz – 100 MHz |
