Product Overview

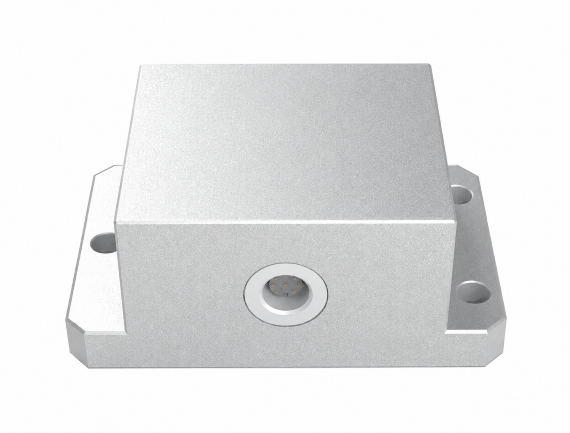

The SensorsX SX-MTMSB Series is a single-axis MEMS inclinometer designed for continuous tilt and attitude measurement in industrial applications. The series supports selectable measurement ranges up to ±120°, 0.001° resolution, and multiple analog or digital output options, including 4–20 mA, voltage output, RS-485, CANopen, Modbus, and Profibus. With a 12–32 V DC supply range, aluminum-alloy housing, IP67/IP68 protection options, and direct cable, M12 × 1, or Binder 712 connection configurations, the series is suitable for aerospace, high-speed rail, engineering machinery, marine equipment, and related industrial tilt-measurement applications.
Main Features
- Single-axis MEMS sensing for continuous industrial tilt measurement.
- Continuous inclination and attitude measurement.
- Selectable angular ranges: ±15°, ±30°, ±40°, ±50°, ±60°, ±70°, ±80°, ±90°, ±100°, ±110° and ±120°.
- 0.001° measurement resolution.
- Total accuracy options: 0.25% FS or 0.5% FS.
- Temperature drift of ±0.005°/°C.
- Typical long-term stability of ≤ ±0.1% FS/year.
- 4–20 mA, 0.5–4.5 V DC and 0–5 V DC analog output options.
- CANopen, Modbus, Profibus and RS-485 digital output options.
- 24 V DC nominal supply with a 12–32 V DC operating range, reverse-polarity protection and 50 V DC overvoltage protection.
- Aluminum-alloy housing with IP67 protection for Binder 712 or M12 connector and IP68 for direct cable outlet.
- Operating temperature from −40 to +85 °C.
- 50 g shock resistance and 5 g vibration resistance.
-

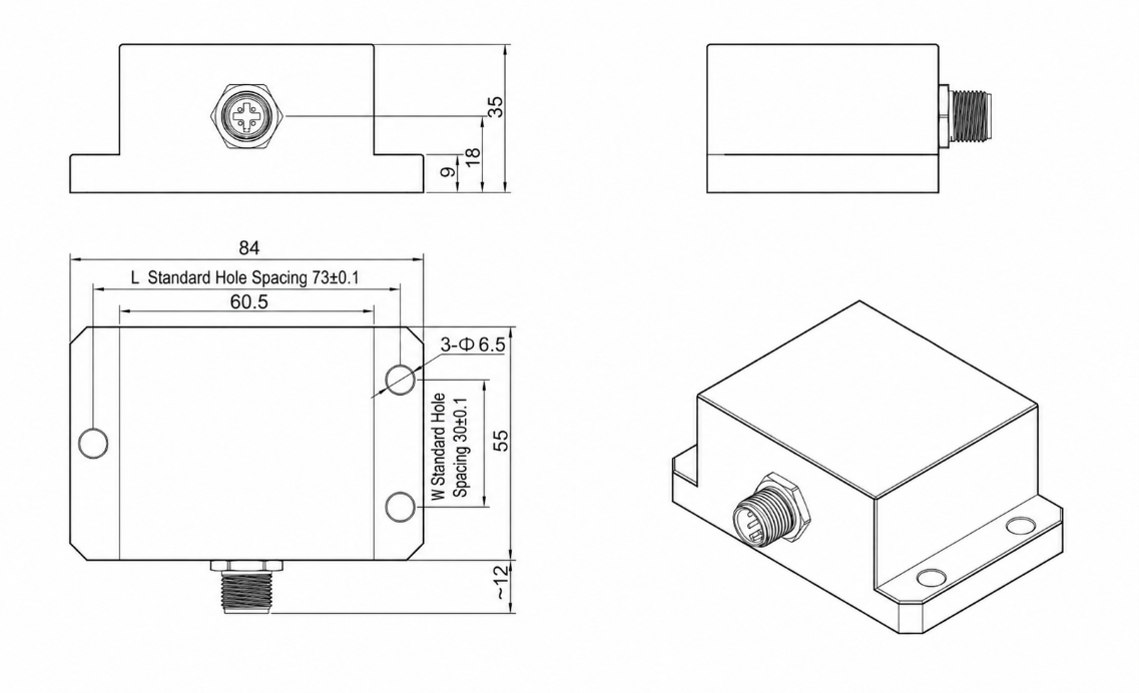

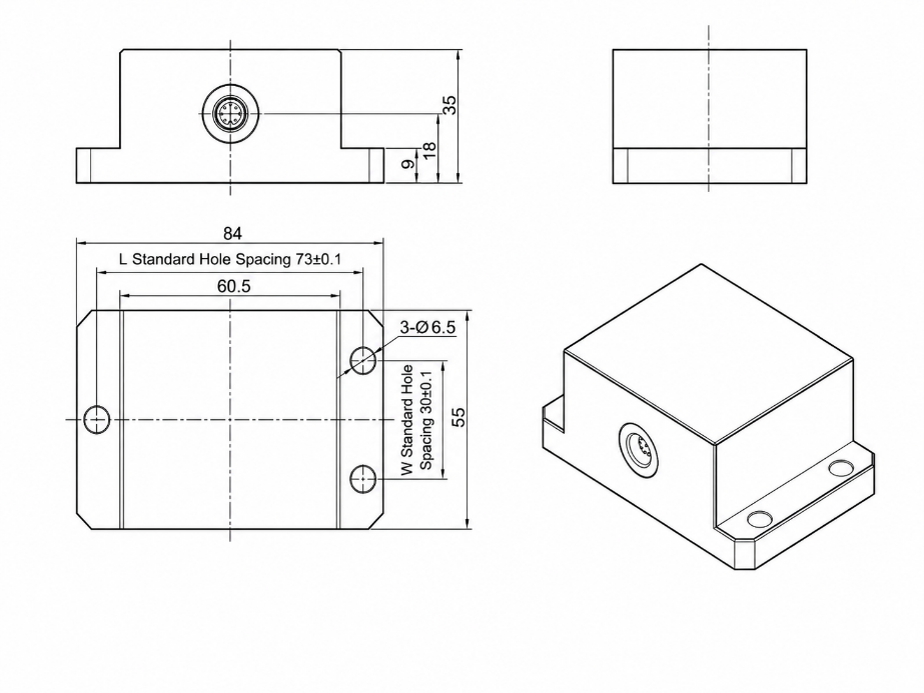

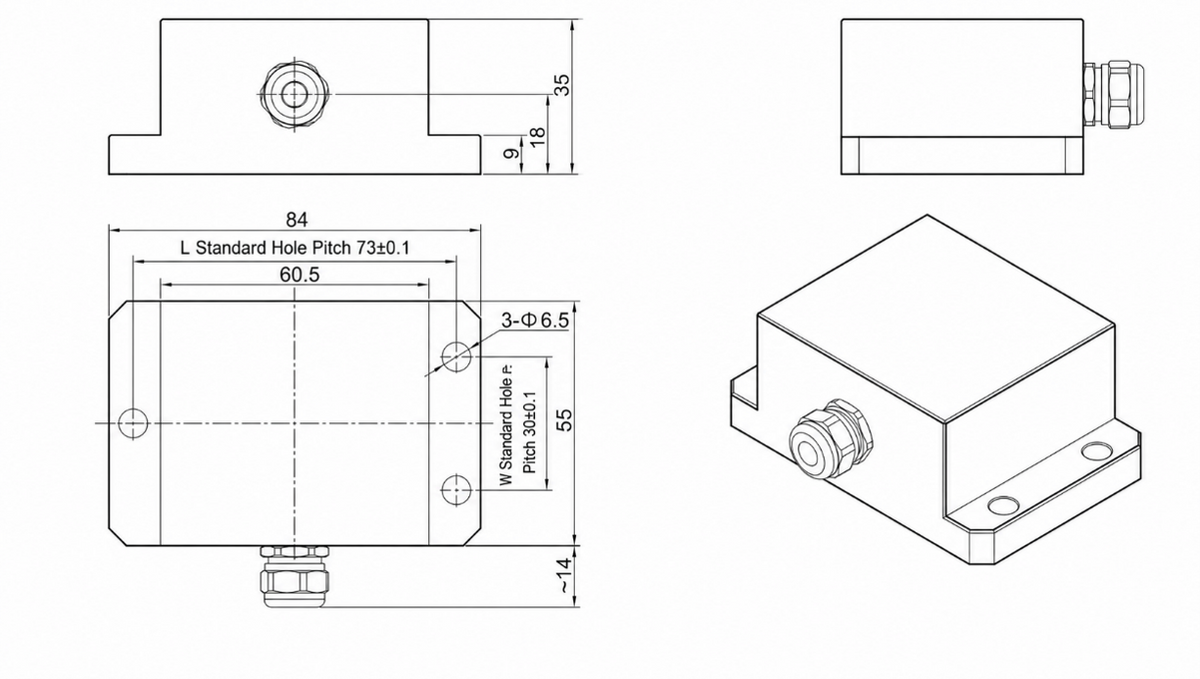

Top-surface or side-surface mounting using three M6 fasteners; mounting-hole spacing L and W can be customized.
Product Application
Typical Applications
Technical Data
| Measurement |
| Product Type & Principle |
Single-axis MEMS inclinometer for continuous tilt and attitude measurement |
| Angular Range |
±15°, ±30°, ±40°, ±50°, ±60°, ±70°, ±80°, ±90°, ±100°, ±110° or ±120° |
| Resolution |
0.001° |
| Total Accuracy |
0.25% FS or 0.5% FS. |
| Temperature Drift & Stability |
Temperature drift: ±0.005°/°C. Long-term stability: ≤ ±0.1% FS/year (typical) |
| Power & Output |
| Supply Voltage |
24 V DC nominal (12–32 V DC operating range) |
| Output |
4–20 mA (3-wire); 0.5–4.5 V DC (3-wire); 0–5 V DC (3-wire); RS-485, CANopen, Modbus or Profibus (4-wire) |
| Current Consumption |
≤ 40 mA |
| Electrical Protection |
Power-supply reverse-polarity protection; 50 V DC overvoltage protection |
| Insulation Resistance |
≥ 100 MΩ at 100 V DC |
| Mechanical & Materials |
| Housing Material |
Aluminum alloy |
| Electrical Connection & Ingress Protection |
Binder 712 (7-pin) or M12 × 1 male (5-pin) connector: IP67. Direct cable outlet: IP68 |
| Performance |
| Shock Resistance |
IEC 60068-2-27: 50 g, 11 ms |
| Vibration Resistance |
IEC 60068-2-6: 49.1 m/s² (5 g) |
| EMC / Surge Immunity |
IEC 61000-6-2 / IEC 61000-6-3 / IEC 61000-6-4; surge immunity tested |
| Environmental Conditions |
| Operating Temperature |
−40 to +85 °C |
| Storage Temperature |
−40 to +120 °C |
| Compliance |
RoHS / CE |
