Product Overview

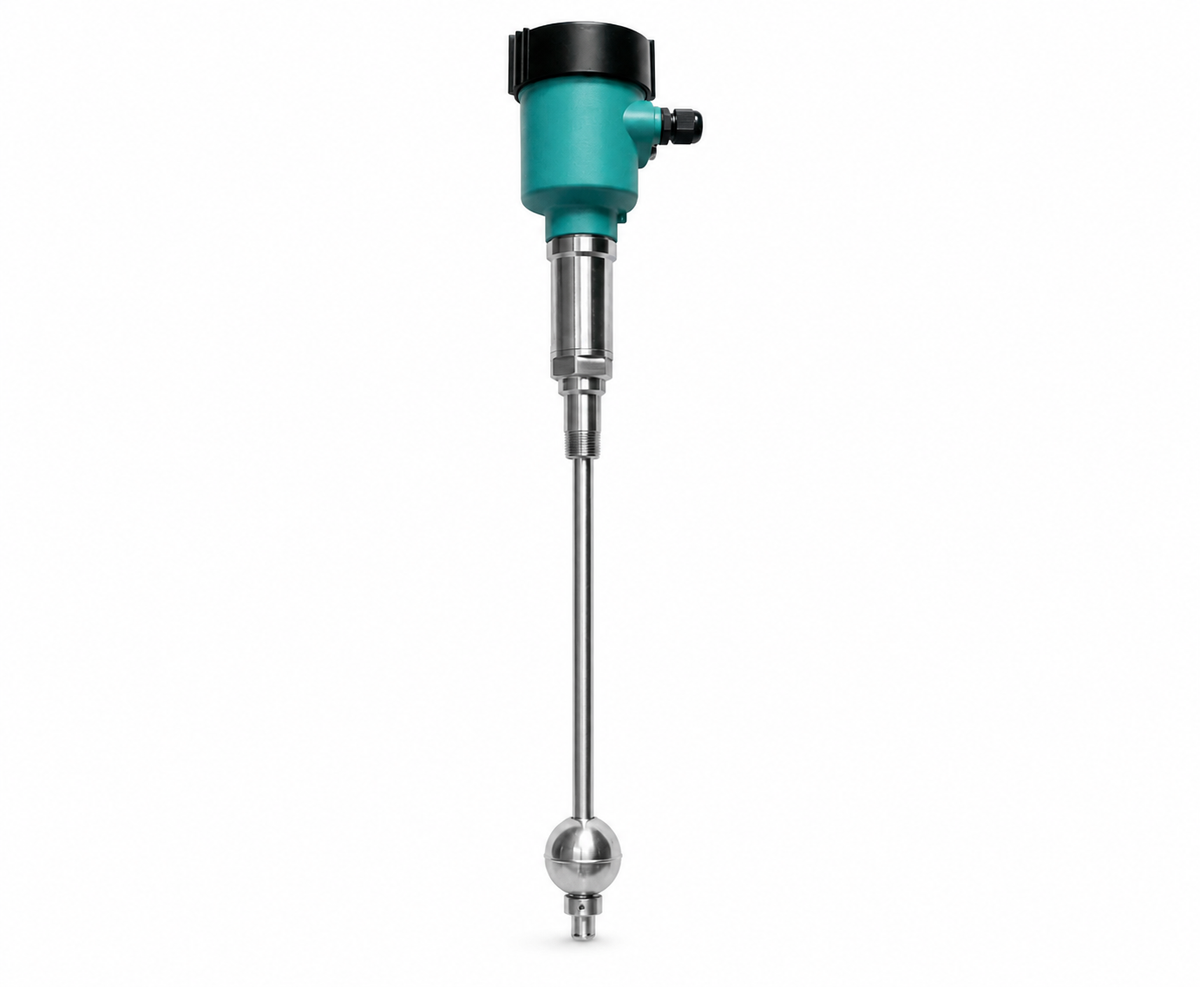

The SensorsX SX-LMNB Series is a magnetostrictive level transmitter designed for precise and reliable liquid-level measurement in storage tanks, process vessels, interface applications, and similar industrial systems. A magnetic float follows the liquid surface, while the internal magnetostrictive sensing element determines the float position from the transit time of a torsional return pulse. Rigid, flexible, and corrosion-resistant probe configurations are available, with support for single or dual-position measurement and multiple analog and digital output signals.
Main Features
- Single- or Dual-Position Level Measurement
- Rigid Probe Range: 50–5000 mm
- Flexible Probe Range: 4000–20000 mm
- Multiple Output Options: 4–20 mA / 0–5 V / 0–10 V / ±5 V / ±10 V / RS485 / HART / Profibus
- Non-Linearity < ±0.05% F.S.
- Repeatability < ±0.002% F.S.
- 16-Bit D/A Conversion
- Update Time up to 20 ms
- Operating-Temperature Versions up to 200°C
- Rigid / Flexible / Corrosion-Resistant Probe Configurations
- 304 SS / 316L SS / PP / PVDF Probe Materials
- Flameproof Ex d IIB T5 Version Available
- IP65 Standard; IP67 / IP68 Available on Request
-
Direct Cable / Circular Connector / Terminal Electrical Connections
Product Application
Industries Served
Bulk Storage & Process Tanks
|
|
Hazardous & High-Temperature
|
Chemical storage tank level
|
Oil-water separator interface
|
Flameproof-area installations
|
Process vessel interface / level control
|
Tank bottom-water detection
|
High-temperature process vessels
|
Fuel and petroleum tank gauging
|
Hydrocarbon / water interface monitoring
|
Dual-level measurement applications
|
Technical Data
| Measurement |
| Product Type |
Magnetostrictive Level Transmitter |
| Measurement Principle |
Magnetostrictive torsional-pulse position measurement using a magnetic float |
| Measured Positions |
1 to 2 positions |
| Effective Range |
Rigid: 50–5000 mm / Flexible: 4000–20000 mm; custom ranges available |
| Measurement Type |
Single Level / Dual Level / Level and Temperature |
| Power & Output |
| Supply Voltage |
+24 VDC ±10% or ±15 VDC ±10% |
| Output Signal |
4–20 mA / 0–5 VDC / 0–10 VDC / −5 to +5 VDC / −10 to +10 VDC / RS485 Modbus / HART / Profibus |
| Load — Current Output |
Maximum 600 Ω |
| Load — Voltage Output |
Maximum 2 mA |
| Operating Current |
<70 mA |
| Mechanical & Materials |
| Probe Construction |
Rigid Probe / Flexible Probe / Corrosion-Resistant Probe |
| Probe Material |
304 Stainless Steel / 316L Stainless Steel / PP / PVDF |
| Pressure Rating |
Determined by selected float |
| Electronics Housing Material |
Stainless Steel / Aluminum |
| Electronics Enclosure |
Type A Stainless Steel / Type B Aluminum Alloy / Type C PP / Type D PVDF |
| Installation Interface |
Threaded Connection |
| Electrical Connection |
Direct Cable / Circular Connector / Terminal |
| Performance |
| Non-Linearity |
< ±0.05% F.S.; maximum error 150 μm for range below 300 mm |
| Repeatability |
< ±0.002% F.S. |
| Hysteresis |
<0.002% F.S. |
| Temperature Effect |
<0.007% F.S./°C |
| Zero Adjustment Range |
100% F.S. |
| Update Time |
Range-dependent; ≤20 ms |
| Environmental Conditions |
| Operating Temperature |
−40 to +85°C / −40 to +120°C / −40 to +200°C |
| Storage Temperature |
−40 to +100°C |
| Ingress Protection |
IP65 standard; IP67 / IP68 available on request |
| Installation & Options |
| Installation |
Threaded top or side mounting |
| Explosion Protection |
Without / Flameproof Ex d IIB T5 |
| Measurement Configuration |
Single Level / Dual Level / Level + Temperature |
