SX-CHUCA Series
SX-CHUCA Series

SX-CHUCA Series

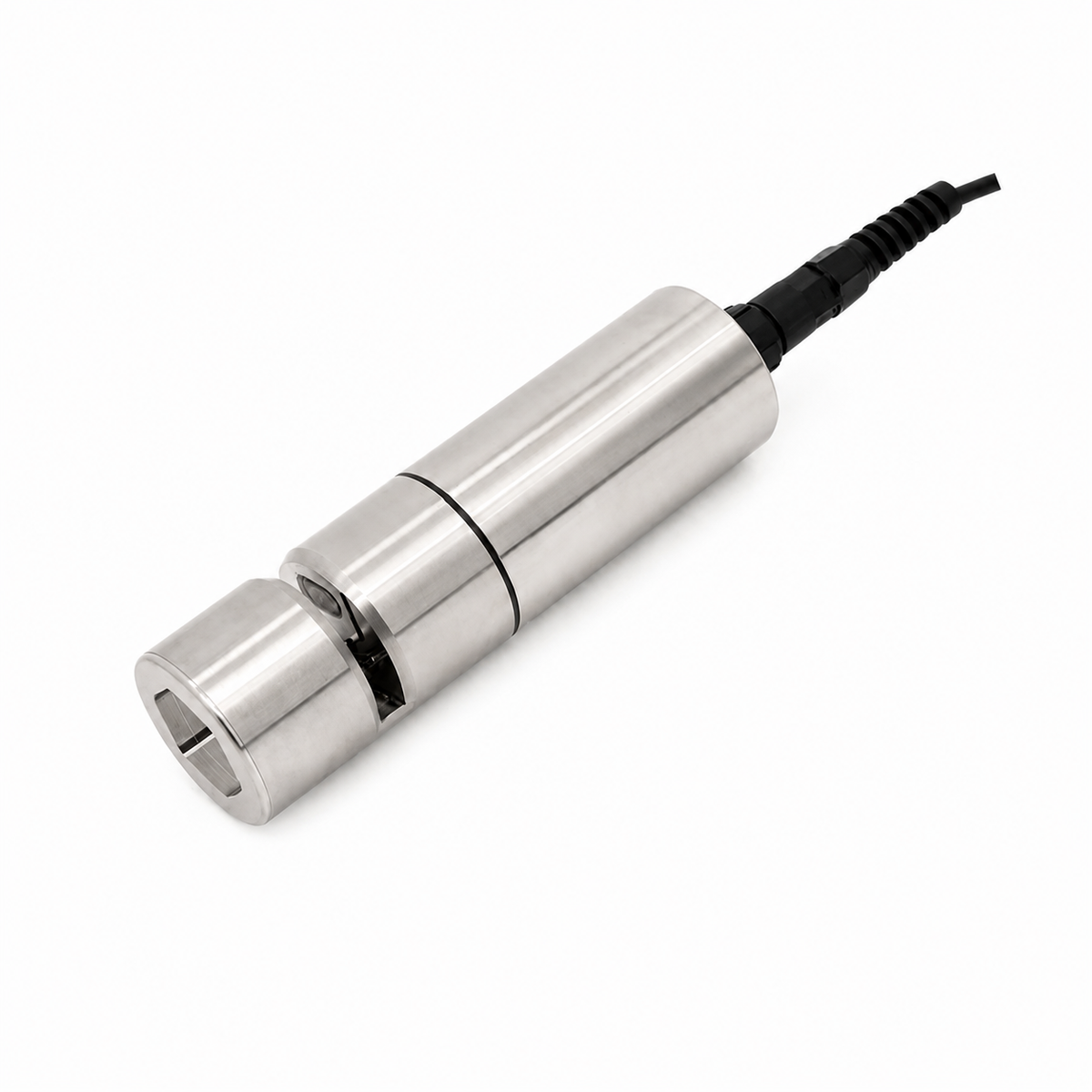

The SensorsX SX-CHUCA Series is a self-cleaning UV254 sensor designed for continuous COD, TOC, turbidity, and temperature monitoring in water. Using a reagent-free UV absorption method, it features automatic turbidity compensation and an integrated cleaning brush for stable, low-maintenance operation. With RS-485/Modbus communication and IP68 protection, it is ideal for wastewater treatment, industrial effluent, and surface water monitoring.

  • Measurement Principle: UV absorption method (UV254)
  • COD Range: 0–500 mg/L / 0–1,500 mg/L
  • TOC Range: 0–180 mg/L / 0–600 mg/L
  • Turbidity Range: 0–300 NTU / 0–500 NTU
  • Accuracy: ±5% COD
  • Output Signal: RS-485 / Modbus
  • Power Supply: DC 12–24 V, ≥1 A
  • Ingress Protection: IP68
  • Ambient Temperature: 0°C to +50°C (32°F to 122°F)
Ordering Code
$1,664.00

Product Overview

The SX-CHUCA Series self-cleaning COD sensor is based on the UV absorption method. It measures the absorption of 254 nm ultraviolet light by dissolved organic matter to determine the concentration of dissolved organic pollutants in water. The sensor requires no reagents and generates no chemical waste, making it a cost-effective and environmentally friendly solution. An integrated turbidity-detection light source provides automatic turbidity compensation, while the automatic cleaning brush helps maintain stable long-term performance during continuous monitoring.

Main Features

  • No reagents required; pollution-free; more economical and environmentally friendly
  • Measures COD, TOC, turbidity, and temperature
  • Automatic turbidity compensation for reliable measurement performance
  • Equipped with self-cleaning brush to prevent biofouling, extending maintenance interva
  • Built-in calibration parameters for convenient field use and recalibration

Product Application

Industries Served

COD / TOC and turbidity monitoring in wastewater treatment
Industrial effluent monitoring
 Surface water quality monitoring

Technical Data

Measurement
Product Type Self-Cleaning UV254 COD / TOC / Turbidity Sensor
Measurement Principle UV absorption method
COD Range 0–500 mg/L / 0–1,500 mg/L
TOC Range 0–180 mg/L / 0–600 mg/L
Turbidity Range 0–300 NTU / 0–500 NTU
Accuracy & Resolution
COD Accuracy ±5%
Resolution 0.01 mg/L
Power & Communication
Supply Voltage DC 12–24 V, ≥1 A
Power Consumption 0.25 W idle / 0.8–2 W while brushing
Digital Communication RS-485 / Modbus
Environmental Conditions
Operating Temperature 0–50 °C (32–122 °F)
Ingress Protection IP68
Mechanical & Materials
Housing Material 316L Stainless Steel or Titanium Alloy
Dimensions Φ50 mm × 179 mm
Cable Length 10 m standard, customizable
Cleaning Method Integrated automatic cleaning brush

Certifications & Compliance
