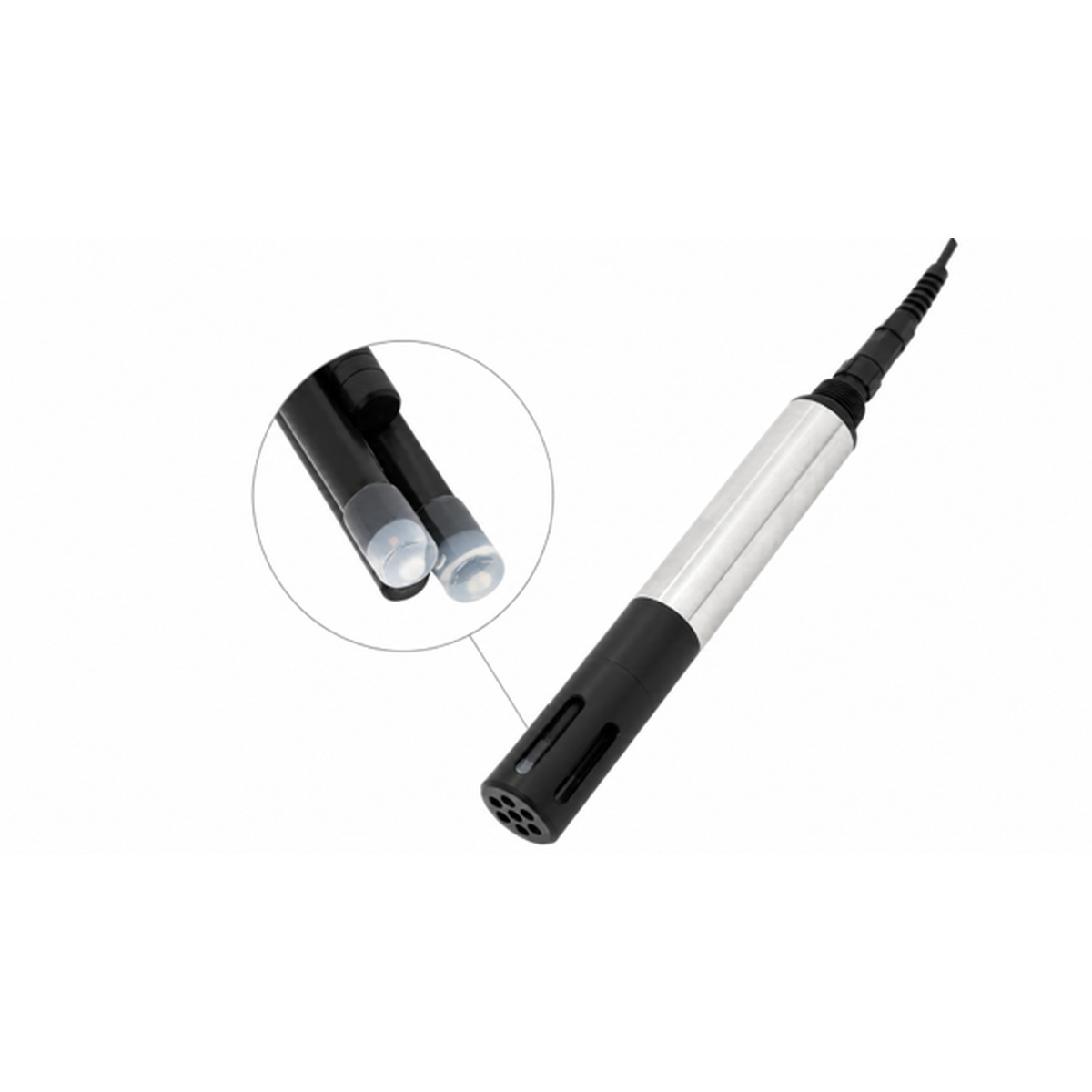

Product Overview
The SX-CNLNA Series online ammonia-nitrogen sensor requires no reagents and generates no chemical waste, enabling real-time online monitoring. It is equipped with an ammonium-ion electrode, pH electrode, and reference electrode as standard, with an optional potassium-ion electrode. Automatic pH and temperature compensation helps improve measurement accuracy. The sensor supports direct immersion installation and provides a cost-effective solution for online ammonia-nitrogen monitoring. RS-485 output with Modbus protocol enables convenient system integration.
Main Features
- Digital sensor with RS-485 output, Modbus protocol
-
No reagents required; no chemical waste; cost-effective and environmentally friendly
- Automatic pH and temperature compensation
- Ion-selective electrode method; no electrolyte solution required; electrodes can be individually replaced for easy maintenance
- Built-in calibration parameters for convenient field use and recalibration
Product Application
Industries Served
| Real-time online ammonia-nitrogen monitoring in water and wastewater treatment |
Technical Data
| Measurement | |
| Product Type | Ammonia-Nitrogen Sensor (Brushless) |
| Measurement Principle | Ion-selective electrode method |
| NH4-N Range | 0–100 mg/L (0–1,000 mg/L optional) |
| pH Range | 4–10 pH |
| Accuracy & Calibration | |
| NH4-N Accuracy | ±10% or ±0.5 mg/L (whichever is greater) |
| Resolution | 0.01 mg/L |
| Calibration | 1-point or 2-point calibration |
| Power & Communication | |
| Supply Voltage | DC 9–24 V, ≥1 A |
| Power Consumption | 0.25 W |
| Digital Communication | RS-485 / Modbus |
| Environmental Conditions | |
| Operating Temperature | 0–50 °C (32–122 °F) |
| Ingress Protection | IP68 |
| Mechanical & Materials | |
| Housing Material | POM + 316L Stainless Steel (titanium alloy customizable) |
| Dimensions | Φ36 mm × 265 mm, with protective cover |
| Cable Length | 10 m standard, customizable |
