PVDF vs Piezoresistive vs Capacitive Sensors

How to select the right technology for dynamic and static force or pressure measurements

The decision in one minute

Start with the measurement behavior, not the material name. If the system must hold an accurate reading while force remains constant, begin with piezoresistive or capacitive sensing. If the system mainly needs to detect changing strain, vibration, impact, acoustic energy, or event timing, PVDF deserves early evaluation. When the product needs both steady force and fast events, a hybrid architecture may be the cleanest answer.

The first question to ask is: Must the sensor report a force that is not changing?

Why simple ranking tables mislead

Terms such as sensitivity, speed, power, and cost are meaningful only when the geometry, force path, bandwidth, excitation, electronics, packaging, and environment are defined. A high open-circuit voltage does not automatically mean high charge output or better accuracy. Likewise, “capacitive” describes many structures - from touch electrodes to diaphragm pressure sensors - that behave very differently in water, through gloves, or behind a cover layer.

Three ways to convert force into a signal

Figure 1. Simplified sensing mechanisms and typical signal paths. Actual implementations vary by geometry and electronics.

Piezoresistive sensing

Mechanical strain changes the resistance of a conductive element or semiconductor piezoresistor. Four active resistors are often arranged as a Wheatstone bridge to improve differential output and common-mode rejection. The bridge requires excitation, and production systems commonly add amplification, temperature compensation, linearization, and an ADC. Piezoresistive sensing is widely used when a stable static or slowly varying force or pressure reading is required.

Capacitive sensing

Force or pressure changes a capacitor’s plate spacing, overlap, dielectric, or fringe field. Capacitive structures can measure static and low-frequency inputs, often with low average power, but the interface must resolve small capacitance changes while controlling parasitic capacitance, moisture, contamination, shielding, mechanical gaps, and environmental drift. Performance through gloves or water depends on the exact electrode geometry, cover stack, sensing mode, controller, and calibration strategy.

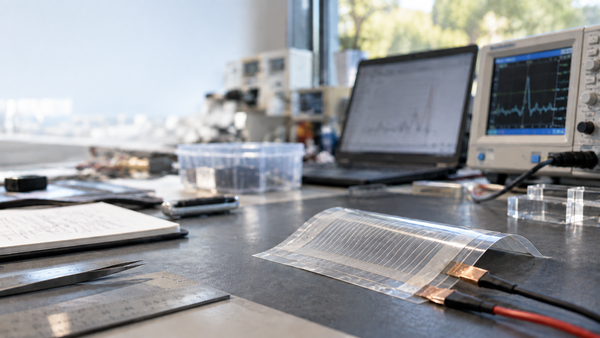

Piezoelectric PVDF sensing

Changing mechanical strain generates charge on the electrodes of a poled PVDF film. The film element does not require excitation power, but its amplifier and data path do. PVDF is especially attractive for transient, vibration, impact, acoustic, and dynamic-strain measurements where flexibility and low mass matter. Its output normally decays toward baseline under a constant load because the sensor and readout form a high-pass system.

Engineering comparison

Important: This table is a starting framework, not a substitute for comparing candidate parts under the same mechanical input, bandwidth, temperature, mounting, and readout conditions.

The decision path

Figure 2. A practical first-pass selection flow based on static and dynamic measurement needs.

If the load must remain visible

Examples include a scale, clamp-force monitor, tank pressure measurement, or gripper that must confirm continuous holding force. Begin with a static-capable technology. Piezoresistive sensing is often a straightforward choice when a robust bridge output and established compensation path are valuable. Capacitive sensing can be compelling where very small displacement, low force, low power, or dense arrays matter and the mechanical gap and electrical environment can be controlled.

If the event matters more than the steady level

Examples include impact detection, machine vibration, footstep timing, contact acoustics, pulse waveforms, and slip onset. PVDF can offer an excellent combination of flexibility, low mass, wide application-dependent bandwidth, and self-generated sensing charge. Define the minimum event frequency and acceptable low-frequency droop before selecting film geometry and front-end time constants.

When a hybrid sensor is the better answer

A product does not have to force one transduction technology to do two incompatible jobs. In a robotic gripper, a piezoresistive or capacitive layer can measure continuous grip force while a PVDF layer detects first contact, vibration, or slip-related transients. The system can fuse the channels, but each channel still needs its own calibration, diagnostics, bandwidth, and failure criteria.

Figure 3. Conceptual hybrid robotic-gripper architecture combining steady-force and dynamic-event channels.

Application examples

What to put in the specification

·        Measurement behavior. Static, quasi-static, transient, periodic, acoustic, or vibration; allowable droop and required hold time.

·        Mechanical input. Force or pressure range, contact area, direction, preload, curvature, stiffness, mounting, overload, and shock.

·        Dynamic requirements. Frequency range, rise time, settling, resonance, sampling rate, event duration, and signal-to-noise target.

·        Electrical interface. Excitation, bridge or capacitance interface, charge or voltage amplifier, cable length, input impedance, ADC, and EMC constraints.

·        Environmental exposure. Temperature, humidity, condensation, media compatibility, cleaning, ingress protection, flex life, and sterilization if relevant.

·        Metrology. Accuracy, repeatability, hysteresis, creep, drift, cross-axis response, calibration fixture, and acceptance limits.

Frequently asked questions

Is PVDF always faster than piezoresistive or capacitive sensors?

PVDF material supports fast transients, but installed bandwidth is set by the mechanical structure, electrodes, cable, amplifier, filtering, ADC, and sampling. Compare complete systems, not a material-only response claim.

Does self-generating mean zero-power sensing?

The PVDF element generates charge without excitation. The analog front end, ADC, processor, and communications still consume power.

Can capacitive sensors work through gloves or water?

Sometimes. Touch performance depends on sensing mode, electrode and cover geometry, controller range, grounding, shielding, water handling, and calibration. The answer cannot be generalized to every capacitive pressure sensor or touch interface.

Can PVDF measure slow force changes?

Yes, within a defined lower cutoff frequency and acceptable droop. It should not be treated as an indefinite DC force sensor.

Is a hybrid sensor automatically better?

No. It adds channels, calibration, packaging, algorithms, and failure modes. Use it only when the product genuinely needs complementary static and dynamic information.

The practical takeaway

Choose the sensing architecture around the information the product must preserve. Piezoresistive and capacitive technologies are natural starting points for steady-state measurement. PVDF is strongest when the signal is a change, event, vibration, impact, or acoustic waveform and when a thin flexible format adds value. If the product needs both continuous force and fast transients, separate those jobs and evaluate a hybrid stack.
