Product Overview

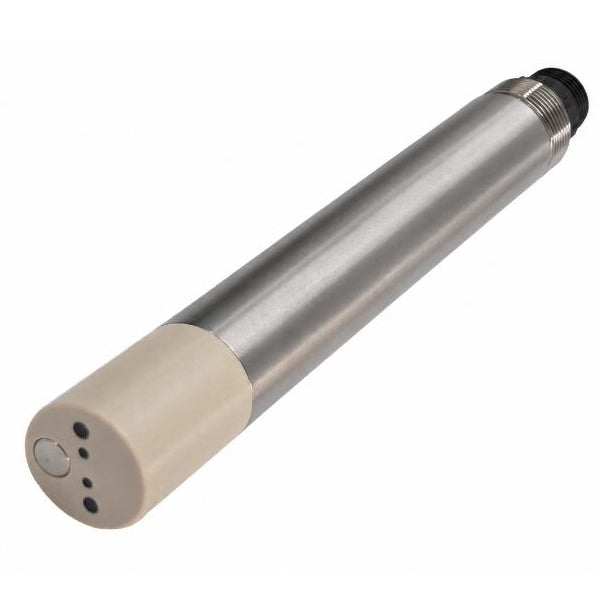

The SX-CCFMA Series online conductivity/salinity sensor uses advanced four-electrode measurement technology with an RS-485 digital interface and Modbus protocol support. Compared with traditional twoelectrode sensors, it provides higher accuracy, a wider measurement range, and improved stability. The probe includes a built-in temperature sensor, and automatic temperature compensation helps maintain measurement accuracy across varying temperatures.
Main Features
- Four-Electrode Measurement Technology Advanced four-electrode technology provides higher accuracy, wider measurement range, and improved stability compared with traditional two-electrode sensors
- Wide Measurement Range Conductivity range up to 0–200 mS/cm, with salinity measurement up to 0–175 ppt and TDS up to 128,000 mg/L
- Multi-Parameter Measurement Simultaneous measurement of conductivity, salinity, TDS, and temperature
- RS-485 Modbus Communication Supports standard Modbus protocol for easy integration with industrial control systems
- Automatic Temperature Compensation Built-in temperature sensor with automatic compensation to maintain measurement accuracy under varying temperatures
- Corrosion-Resistant Design PEEK and titanium alloy housing with IP68 protection, suitable for long-term submersible operation
- Factory Calibration Built-in calibration parameters for quick installation and commissioning
- Flexible Applications Suitable for water quality monitoring, industrial process water, wastewater treatment, and environmental monitoring
Product Application
Industries Served
| Water quality monitoring | Conductivity / salinity / TDS measurement | Industrial and environmental water monitoring |
Technical Data
| Measurement | |
| Product Type | Conductivity / Salinity Sensor |
| Measurement | Four-electrode conductivity |
| Principle | measurement technology |
| Conductivity Range | 0–200 mS/cm (0–2 mS/cm, 2–20 mS/cm, 20–200 mS/cm sub-ranges) |
| Salinity Range | 0–175 ppt |
| TDS Range | 0–128,000 mg/L |
| Accuracy & Calibration | |
| Conductivity Accuracy | ±1% or ±0.01 mS/cm (whichever is greater) |
| Salinity Accuracy | ±1 ppt |
| Calibration | 1–point or 2–point calibration |
| Power & Communication | |
| Supply Voltage | DC 9–24 V, >500 mA |
| Power Consumption | 0.2 W typical |
| Digital Communication | RS-485 / Modbus RTU |
| Environmental Conditions | |
| Operating Temperature | 0–50 °C |
| Ingress Protection | IP68 |
| Mechanical & Materials | |
| Housing Material | PEEK + Titanium Alloy |
| Dimensions | Φ22 mm × 175.5 mm |
| Cable Length | 10 m standard, customizable |
